Rear Mode Control Motor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

Remove the center console, (see CENTER CONSOLE REMOVAL/INSTALLATION )
Disconnect the 7P connector (A) from the rear mode control motor (B). Remove the rod (C) of the rear mode control motor from the rear mode control linkage (D). Remove the self-tapping screws and the rear mode control motor from the rear HVAC unit.

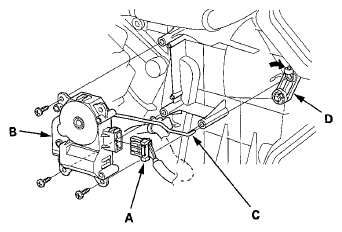

Fig 1: Identifying Rear Mode Control Motor & Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
