Tailgate Handle Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the tailgate.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the tailgate outer handle switch connector (A), then remove the nuts securing the tailgate handle.

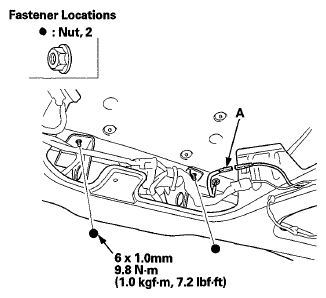

Fig 1: Tailgate Outer Handle Switch Connector & Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull out the tailgate handle (A) to detach the clips, then remove the tailgate handle from the tailgate.

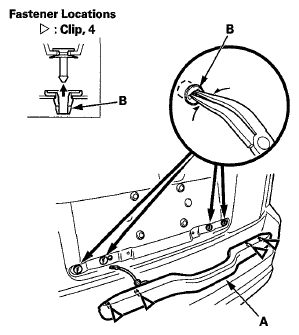

Fig 2: Identifying Tailgate Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the grommets (B) from the trunk lid, then insert the grommets into the clips on the tailgate handle.
Install the tailgate handle in the reverse order of removal, and note these items:

If the clips are damaged or stress-whitened, replace them with new ones.
Make sure the tailgate handle switch connector is plugged in properly.
Push the clips into place securely.
