Hood Latch Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
For some models: Disconnect the hood switch connector (A), then remove the connector clip from the body.

Fig 1: Identifying Hood Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the hood latch (A) from the body.

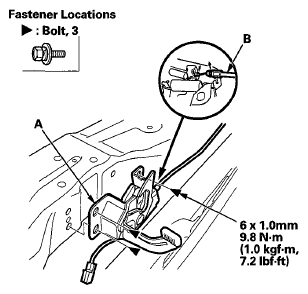

Fig 2: Hood Latch & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hood opener cable (B) from the hood latch. Take care not to kink the cable.
Install the latch in the reverse order of removal, and note these items:

Apply multipurpose grease to the hood latch as indicated by the arrows.
Make sure the hood opener cable is connected properly and the hood switch connector (for some models) is plugged in properly.
Make sure the cable actuates the latch before you close the hood.
Adjust the hood latch alignment (see ADJUSTMENT ).
Make sure the hood opens properly and locks securely.

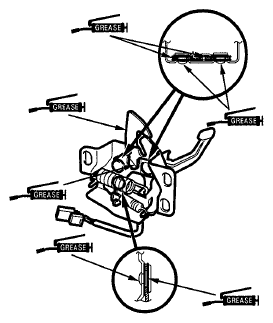

Fig 3: Identifying Multipurpose Grease Application Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
