Hatch Glass Latch Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the tailgate.
Put on gloves to protect your hands.

Remove these items:
- Tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA )
- Rear window wiper motor (see REAR WINDOW WIPER MOTOR REPLACEMENT )
Disconnect the hatch glass latch connector (A), and detach the connector clip (B) from the tailgate.

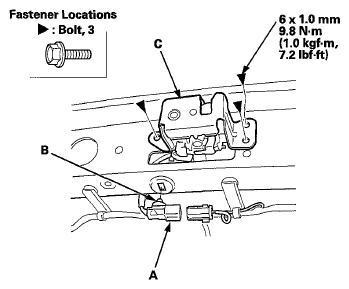

Fig 1: Hatch Glass Latch Connector, Clip & Hatch Glass Latch With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the bolts, then pull the hatch glass latch (C) out.
Disconnect the hatch glass rod (A) from the rod fastener (B) of the hatch glass latch (C), then remove the hatch glass latch. Take care not to bend the rod.
NOTE: If the rod fastener is damaged or stress-whitened, replace it with a new one.

Fig 2: Identifying Hatch Glass Rod, Rod Fastener & Hatch Glass Latch

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Install the latch in the reverse order of removal, and note these items:

Make sure each connector is plugged in properly, and the rod is attached properly.
Make sure the hatch glass opens properly and locks securely.
