Rear Window

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Lift the wiper arm from the rear window.
Turn the rear wiper blade (A), release the lock, and then remove the wiper blade from the rear wiper arm (B).

Fig 1: Identifying Rear Wiper Blade & Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

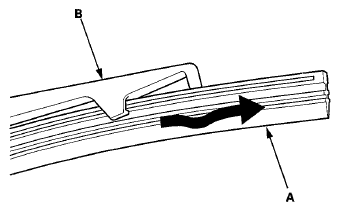

Raise the old rubber (A), and remove it from the wiper blade (B).

Fig 2: Identifying Old Rubber & Wiper Blade
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new rubber and the wiper blade in the reverse order of removal.

NOTE: After installation, confirm that the wiper arm works smoothly.
