EGR Valve Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover (see step 1 on IGNITION COIL REMOVAL/INSTALLATION ).
  2. Disconnect the EGR 5P valve connector (A).

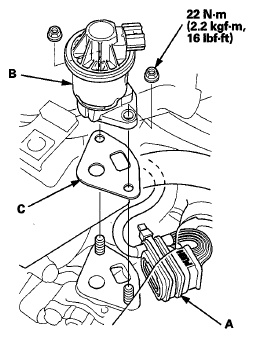

    Fig 1: EGR 5P Valve Connector, EGR Valve & Gasket With Torque Specifications
    G05961498Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EGR valve (B).
  4. Install the parts in the reverse order of removal with a new gasket (C).
