EGR Pipe Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the EGR pipe mounting bolts (A).

Fig 1: EGR Pipe Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise vehicle on lift.
Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
Remove the EGR pipe mounting nuts (A) and the EGR pipe (B).

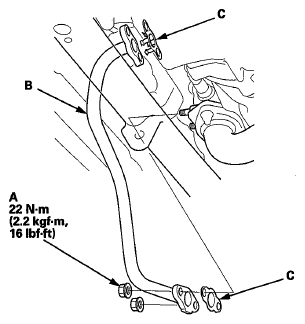

Fig 2: EGR Pipe Mounting Nuts, EGR Pipe & Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with new gaskets (C).
