Washer Tube Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Remove the washer nozzles and clip, then remove the tubes.

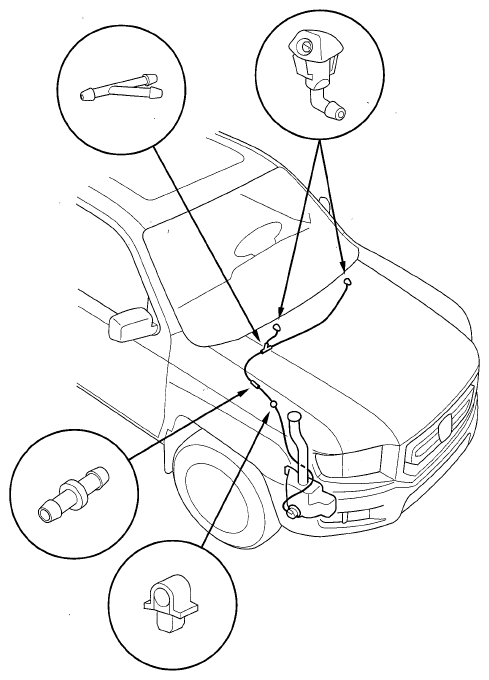

    Fig 1: Identifying Washer Tubes, Nozzles And Clip
    G05968821Courtesy of AMERICAN HONDA MOTOR CO., INC.
