Without Power Tailgate

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
If the tailgate latch can't be unlocked by using the keyless entry transmitter or the inside/outside tailgate switches, or by unlocking the driver's door lock, remove the maintenance lid (A) from the tailgate lower trim panel, then turn the emergency lever (B) clockwise as shown below.

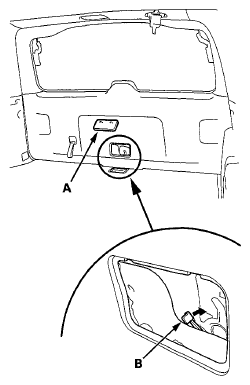

Fig 1: Identifying Emergency Lever & Maintenance Lid

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the actuator connector (A), and remove the bolts.

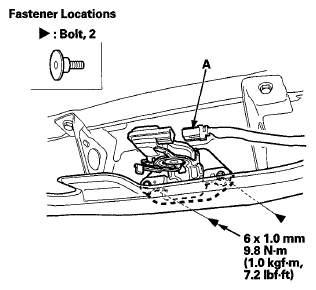

Fig 2: Actuator Connector & Bolts With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Pull the tailgate latch (A) out, disconnect the latch switch connector (B), then remove the latch.

Fig 3: Identifying Tailgate Latch & Latch Switch Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Install the latch in the reverse order of removal, and note these items:

Make sure the connectors are plugged in properly.
Make sure the tailgate opens properly and locks securely. Adjust the tailgate (see ADJUSTMENT ), if necessary.
