Section 45 (Hood): Adjustment
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).

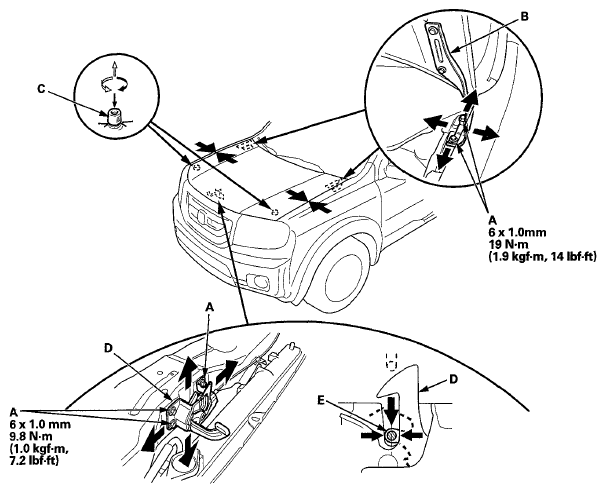

- Slightly loosen each bolt (A).
- Adjust the hood alignment in this sequence:
- Adjust the hood right and left, as well as forward and rearward, by using the elongated holes in the hood hinges (B).
- Turn the hood edge cushions (C), as necessary, to make the hood fit flush with the body at the front and side edges.
- Adjust the hood latch (D) to obtain the proper height at the forward edge, and move the hood latch right or left until the striker (E) is centered in the hood latch.
- Tighten the bolts to the specified torque.
- Check that the hood opens properly and closes securely.
- Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.

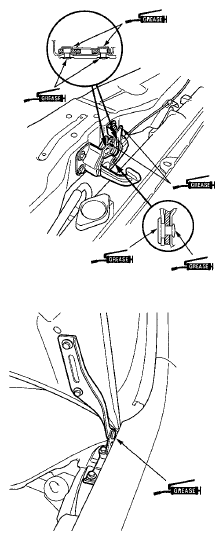

- Apply multipurpose grease to the hood latch and hood hinges as indicated by the arrows.
- Reinstall all of the removed parts.
