Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the mounting nut (A) and the wiper arm (B).

Fig 1: Wiper Arm & Mounting Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the tailgate, and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the 5P connector (A) and remove the three mounting bolts (B), then remove the rear window wiper motor (C).

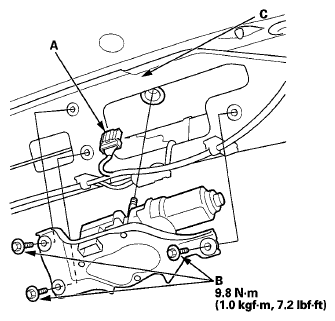

Fig 2: Rear Window Wiper Motor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
