Accumulator Body

The accumulator body is on the secondary valve body, and contains the 1st, 1st-hold, 2nd, 4th, and 5th accumulators. The 3rd accumulator is in the regulator valve body.

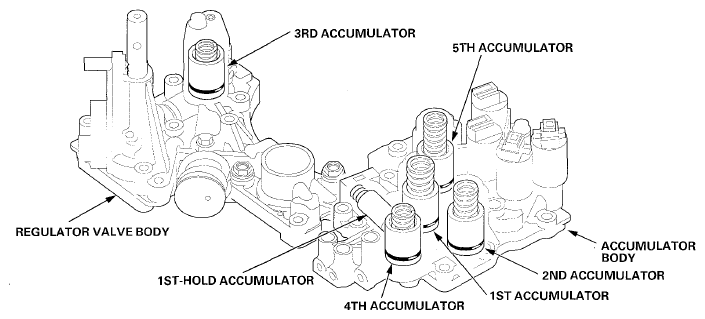

Fig 1: Identifying Accumulator Body Components
G08087099Courtesy of AMERICAN HONDA MOTOR CO., INC.
