Rear Engine Mount Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

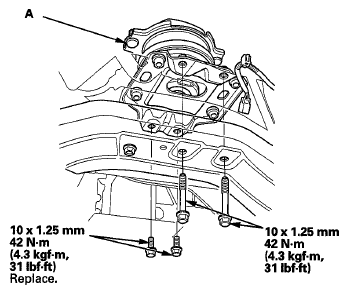

Install the rear engine mount (A).

Fig 1: Rear Engine Mount & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.

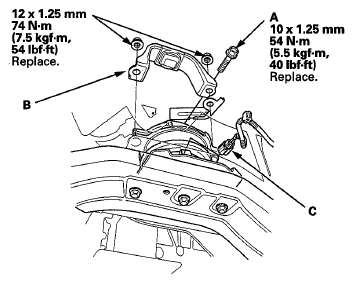

Tighten the rear engine mount bolt (A), then install the rear engine mount stop (B).

Fig 2: Rear Engine Mount Bolt, Rear Engine Mount Stop & Actuator Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the rear engine mount actuator connector (C).
Install the heat shield.

Fig 3: Identifying Heat Shield With Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear WU-TWC (see WARM UP TWC REMOVAL/INSTALLATION ).
