Third Row Seat Access Cable Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to bend the cable.
  • The left second row seat is shown; the right second row seat is similar.
  1. Remove the second row seat (see SECOND ROW SEAT REMOVAL/INSTALLATION  ).
  2. Remove the second row seat-back cover/pad from the seat-back frame (see SECOND ROW SEAT COVER REPLACEMENT  ).
  3. Disconnect the third row seat access cables (A) and detach the clips (B), then remove the cable by pinching the hooks of the holder (C).

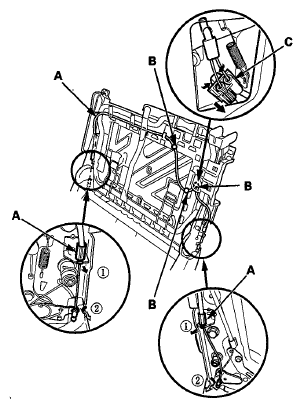

    Fig 1: Identifying Third Row Seat Access Cables & Clips
    G05963431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the cable in the reverse order of removal, and make sure each cable is connected securely.
