Special Tools Required

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

NOTE:
  • Put on gloves to protect your hands.
  • Use appropriate tool from the KTC trim tool set to avoid damage when removing components.
  • Apply oil to the pivot portions of the slide locks.
  • Apply multipurpose grease to the sliding portions of the seat tracks.
  • If the side airbag has deployed, replace the seat frame and related parts with new ones (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).
  1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION  ).
  2. Remove these items:

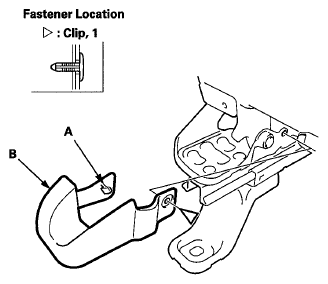

  3. Detach the clip and release the hooks (A), then remove the outer height cover (B).
    Fig 1: Identifying Outer Height Cover
    G05963363Courtesy of AMERICAN HONDA MOTOR CO., INC.

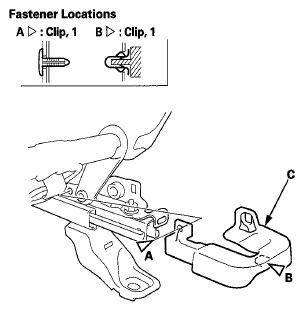

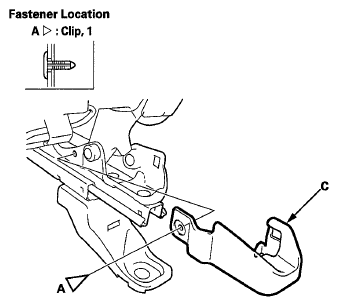

  4. Driver's seat: Detach the clips (A, B), then remove the inner height cover (C).

    8-way power seat

    Fig 2: Identifying Inner Height Cover Clip (8-Way Power Seat)
    G05963364Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Manual height adjustable seat

    Fig 3: Identifying Inner Height Cover Clip (Manual Height Adjustable Seat)
    G05963365Courtesy of AMERICAN HONDA MOTOR CO., INC.

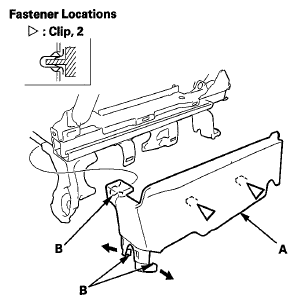

  5. Gently pull out the rear outer foot cover (A) to release the hook (B) and the clips, then remove it.
    Fig 4: Identifying Rear Outer Foot Cover & Hook
    G05963366Courtesy of AMERICAN HONDA MOTOR CO., INC.

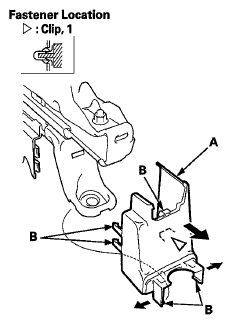

  6. Gently pull out the rear portion of the front outer foot cover (A) to detach the clip and release the hooks (B), then remove it.
    Fig 5: Identifying Front Outer Foot Cover
    G05963367Courtesy of AMERICAN HONDA MOTOR CO., INC.

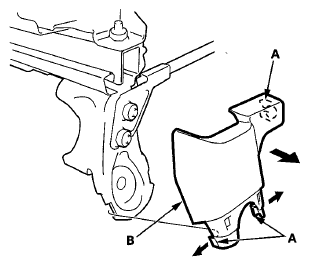

  7. Release the hooks (A), then remove the front inner foot cover (B).
    Fig 6: Identifying Front Inner Foot Cover & Hooks
    G05963368Courtesy of AMERICAN HONDA MOTOR CO., INC.

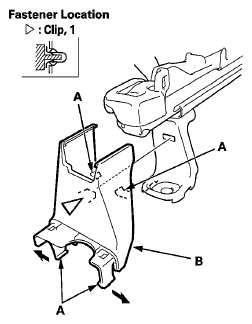

  8. Release the hooks (A) and the clip, then remove the rear inner foot cover (B).
    Fig 7: Identifying Rear Inner Foot Cover & Hooks
    G05963369Courtesy of AMERICAN HONDA MOTOR CO., INC.

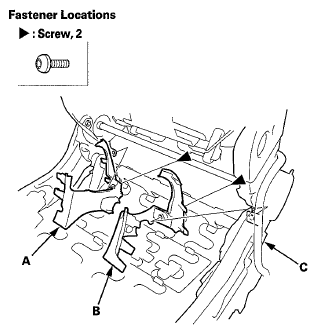

  9. Remove the TORX screws, then remove the rear recline inner cover (A) and the rear recline outer cover (B) from the seat frame (C).
    Fig 8: Identifying Rear Recline Inner & Outer Cover
    G05963370Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the seat components on the new seat frame in the reverse order of removal, and note these items:
    • Make sure the ODS unit and motor connectors are plugged in properly.
    • If the clips are damaged, replace them with new ones.
    • Push the clips into place securely.
