Column Blind Cover Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the column covers.
Do not pry the cover surface with any tools.

Remove the column cover (see COLUMN COVER REMOVAL/INSTALLATION ).
Remove the screws, then remove the blind column cover (A).

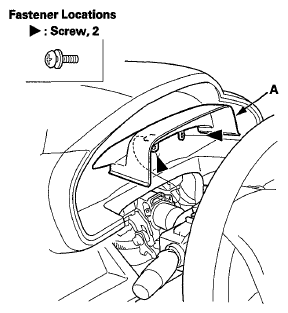

Fig 1: Identifying Blind Column Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the column blind cover in the reverse order of removal, and make sure the wire harness are not pinched before tightening the screws.
