VTM-4 Control Unit Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The VTM-4 control unit must be initialized after replacement, other wise the VTM-4 system will not function.
  1. Remove the left side trim panel.
  2. Remove the left side trim panel lid.
  3. Remove the three bolts (A) from the VTM-4 control unit (B).

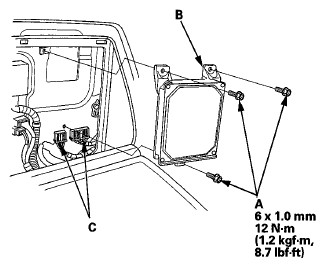

    Fig 1: VTM-4 Control Unit, VTM-4 Control Unit Connectors & Bolts With Torque Specifications
    G05962354Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the VTM-4 control unit connectors (C).
  5. Install the VTM-4 control unit in the reverse order of removal.
