Stabilizer Link Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheel.
  3. Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C), then remove the stabilizer link (D).

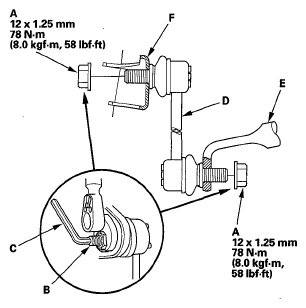

    Fig 1: Flange Nuts, Joint Pin And Hex Wrench With Torque Specifications
    G05965243Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the stabilizer link on the stabilizer bar (E) and damper (F) with the joint pins set at the center of their range of movement.
  5. Install the flange nuts, and lightly tighten them.
  6. Clean the mating surface of the brake disc and the inside of the wheel, then install the front wheel.
  7. Tighten the flange nuts to the specified torque values while holding the respective joint pin with a hex wrench.
  8. Test-drive the vehicle.
