Lower Transmission Mount Removal and Installation: Installation

  1. Install the lower transmission mount (A), then loosely install the new lower transmission mount mounting bolt (B) and tighten the lower transmission mount mounting bolts (C).

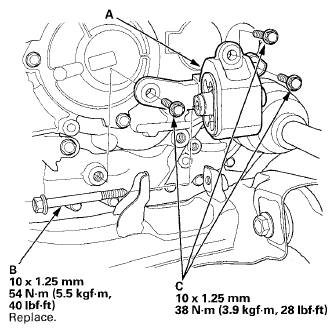

    Fig 1: Lower Transmission Mount And Lower Transmission Mount Mounting Bolt With Torque Specifications
    G08078609Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the transmission jack.
  3. Tighten the lower transmission mount mounting bolts.
  4. Install the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  5. Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
