Front Rocker Arm Oil Control Valve Replacement

  1. Remove the front rocker arm assembly (see ROCKER ARM ASSEMBLY REMOVAL  ).
  2. Remove the front rocker arm oil control valve (A).

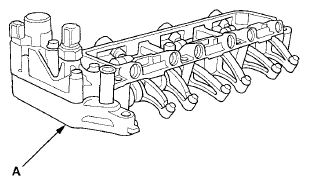

    Fig 1: Identifying Front Rocker Arm Oil Control Valve
    G08078779Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front rocker arm oil control valve in the reverse order of removal.
    NOTE: When installing the front rocker arm assembly, refer to the CAMSHAFT, ROCKER ARM ASSEMBLY, CAMSHAFT SEAL, AND PULLEY INSTALLATION  procedure .
