HANDSFREELINK System
>>
Component Location Index
>>
Without Navigation
Without Navigation

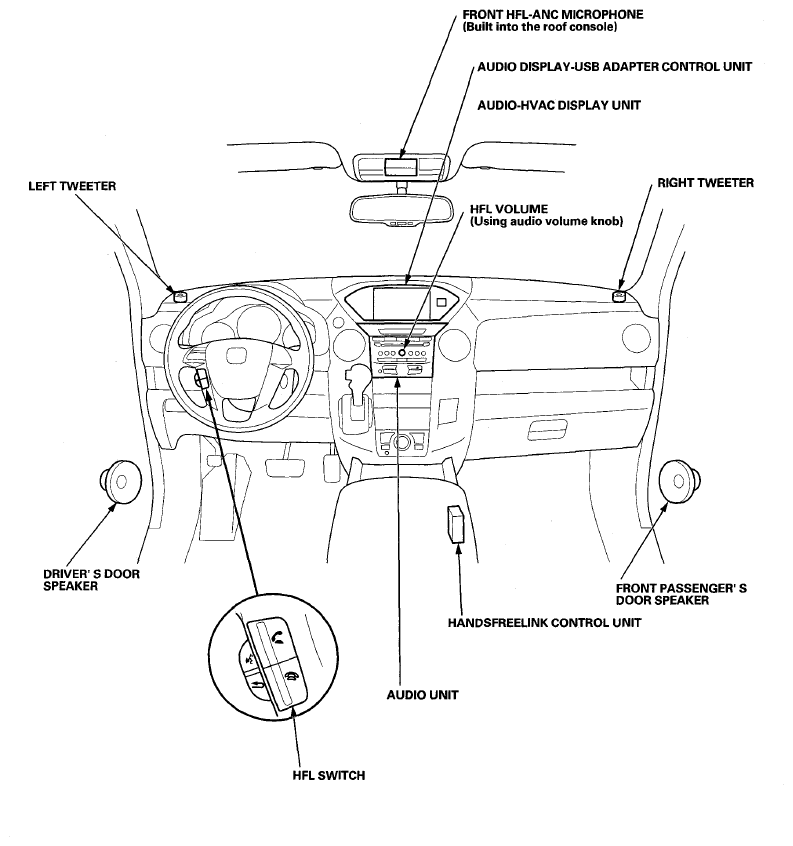

Fig 1: HandsFreeLink System And Related Components Location (Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
