Pilot LX, 4WD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
HANDSFREELINK System
>>
Circuit Diagram
>>
With Navigation
With Navigation

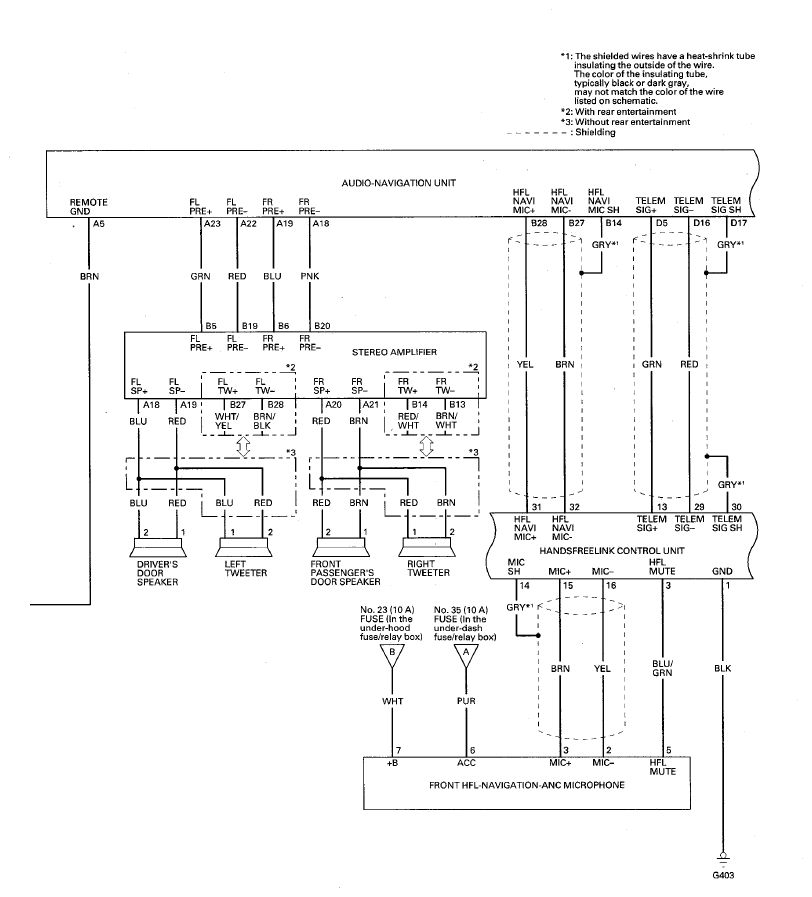

Fig 1: HandsFreeLink System (With Navigation) - Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

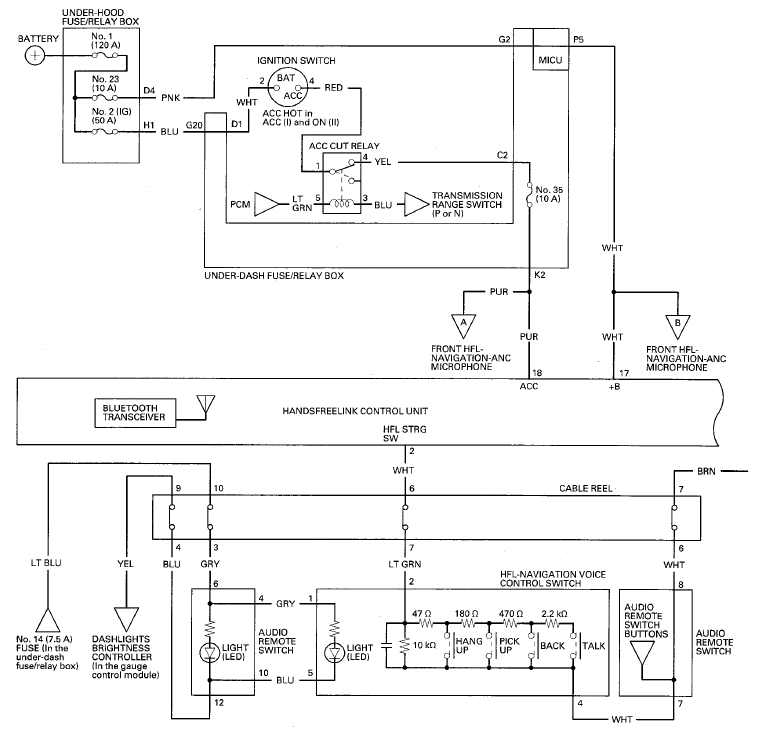

Fig 2: HandsFreeLink System (With Navigation) - Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

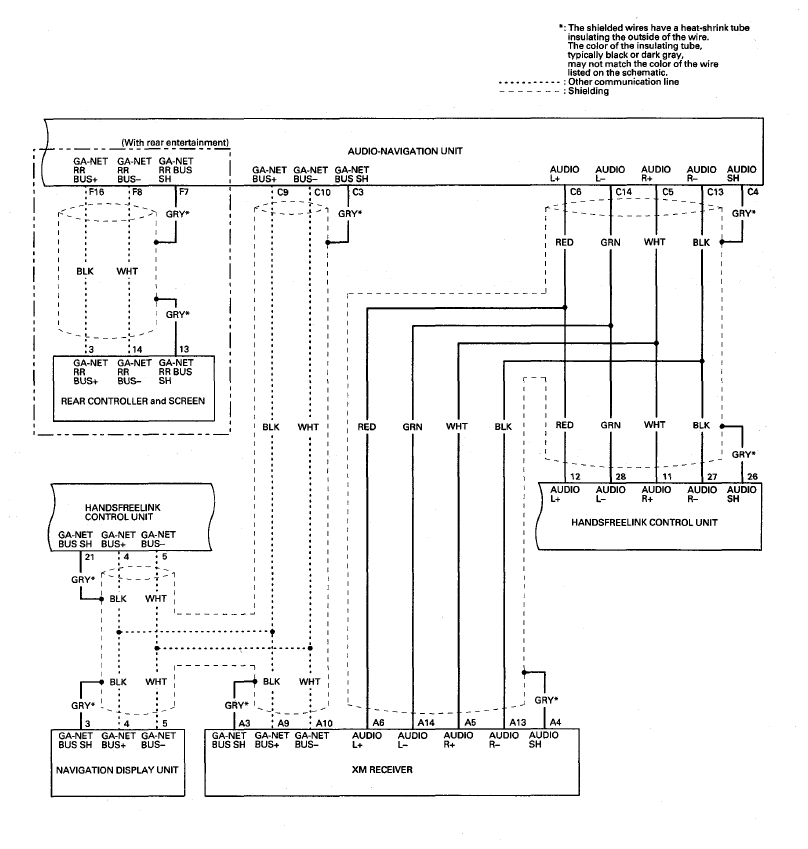

Fig 3: HandsFreeLink System (With Navigation) - Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
