Tailgate Weatherstrip Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

With power tailgate: Remove the left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
With power tailgate: Remove the pivot bracket mounting bolts, then lay the power tailgate rod (A) against the D-pillar trim (B).
NOTE: Be carefull not to scratch the body or the trim.

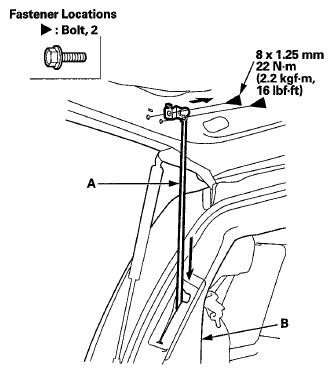

Fig 1: Power Tailgate Rod And D-Pillar Trim With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tailgate weatherstrip (A) by pulling it out.

Fig 2: Identifying Tailgate Weatherstrip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Locate the painted alignment mark (B) on the tailgate weatherstrip. Align the painted mark with the alignment notch in the center of the tailgate opening, and install the tailgate weatherstrip all the way around. Make sure there are no wrinkles in the weatherstrip.
With power tailgate: Fasten the pivot bracket (A) on the tailgate.

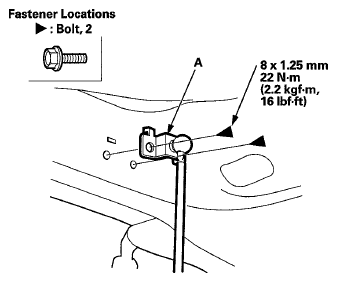

Fig 3: Pivot Bracket On Tailgate With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With power tailgate: Reinstall the left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Check for water leaks (see step 9 on REAR WINDOW MOLDING REPLACEMENT ).
