Component Location Index

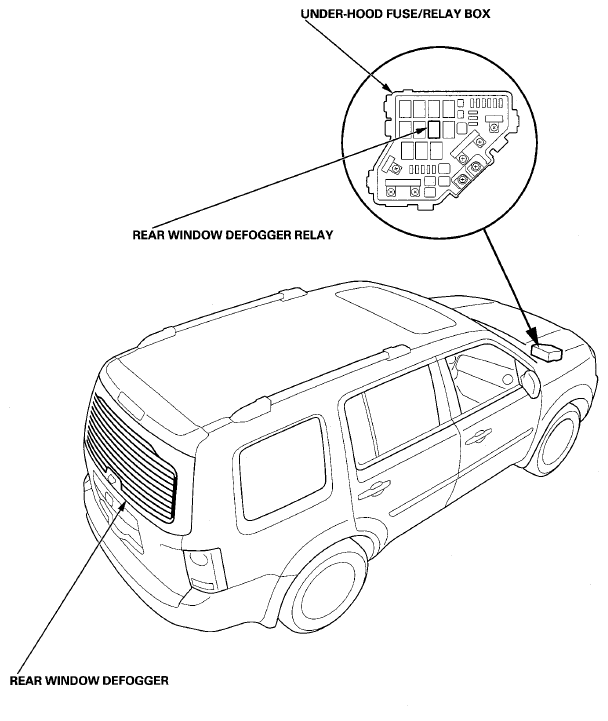

Fig 1: Identifying Rear Window Defogger Components Location (1 Of 2)
G08089268Courtesy of AMERICAN HONDA MOTOR CO., INC.

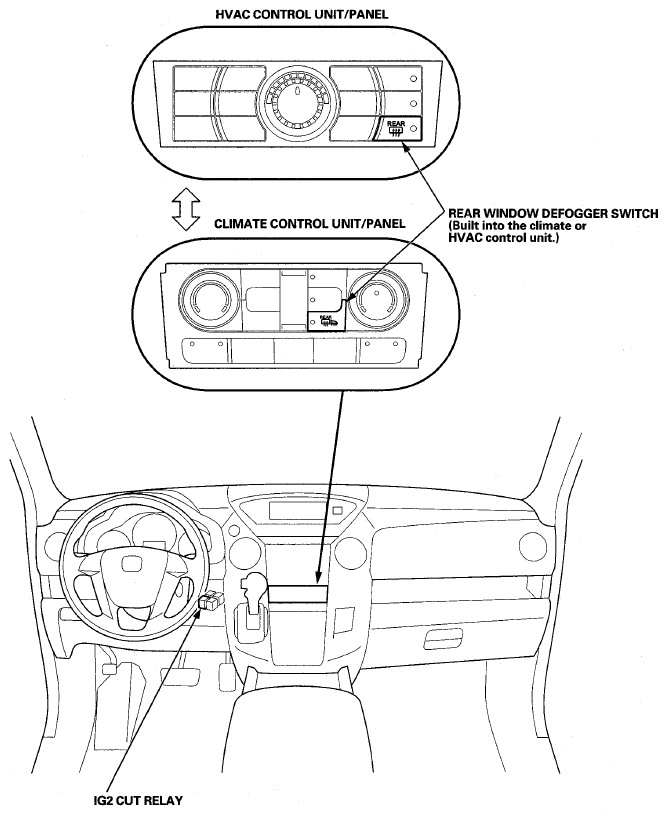

Fig 2: Identifying Rear Window Defogger Components Location (2 Of 2)
G08089269Courtesy of AMERICAN HONDA MOTOR CO., INC.
