Pilot EX, FWD
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heating/Air Conditioning
>>
Circuit Diagram
Circuit Diagram

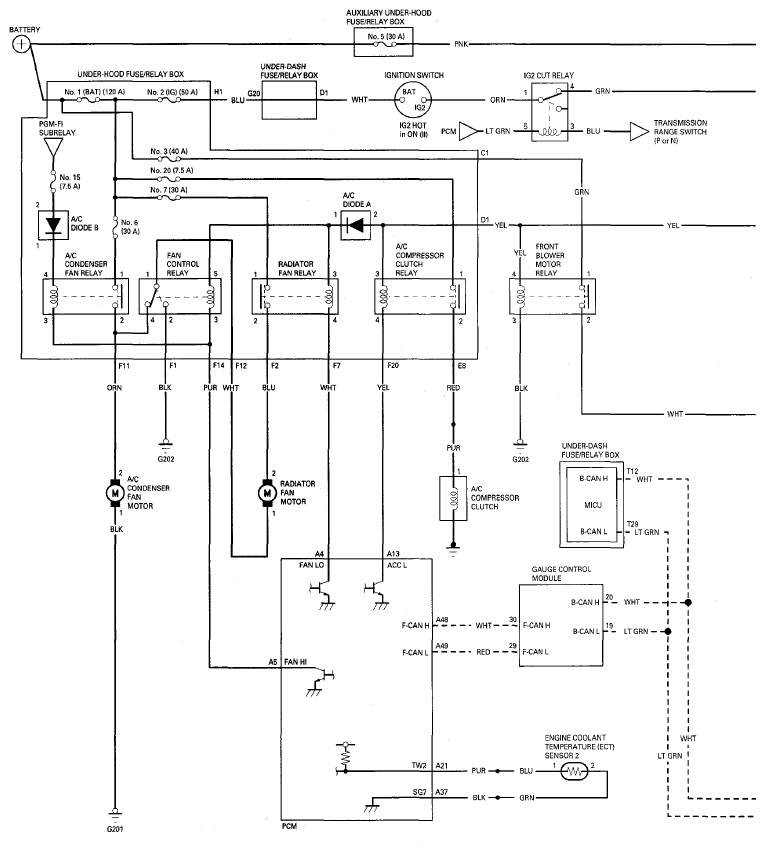

Fig 1: Heating/Air Conditioning - Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

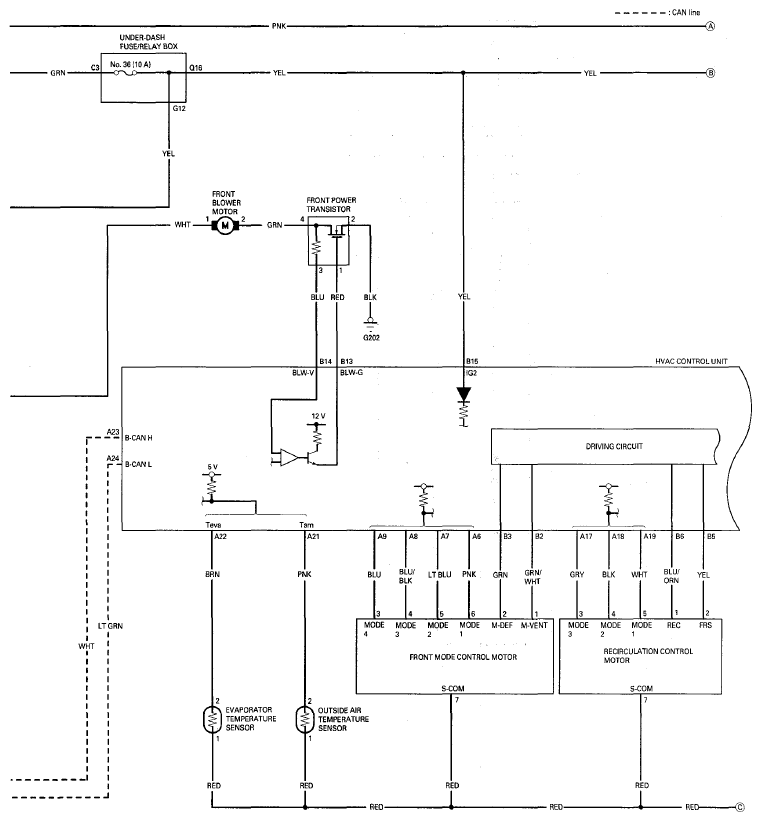

Fig 2: Heating/Air Conditioning - Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

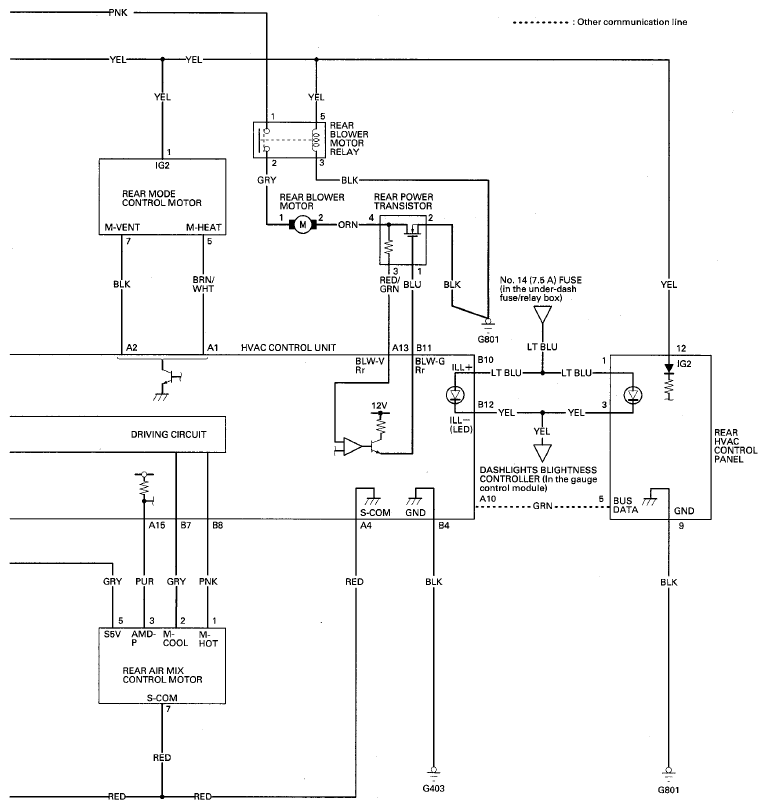

Fig 3: Heating/Air Conditioning - Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

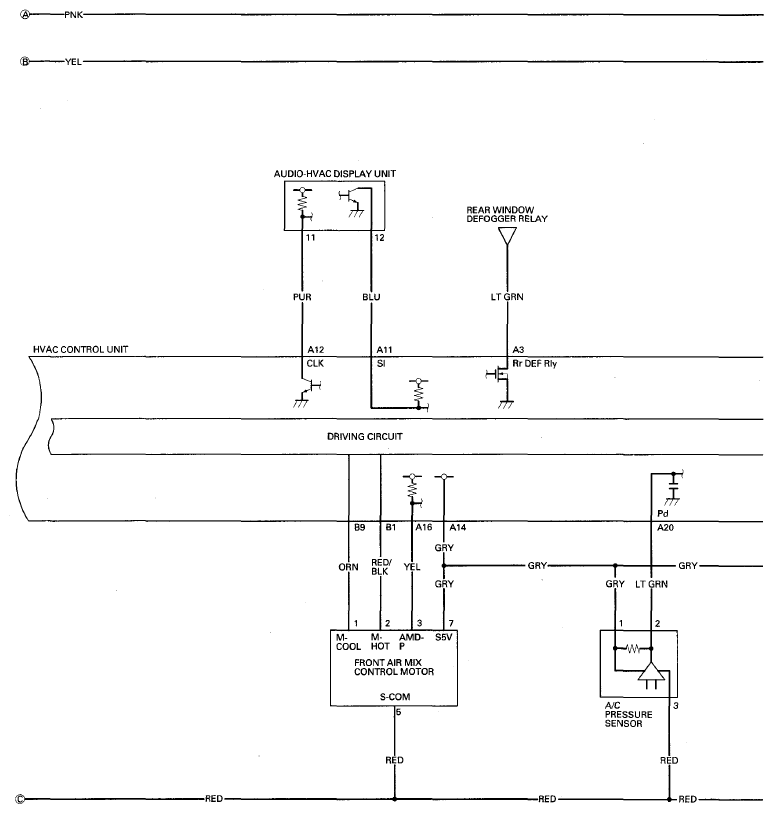

Fig 4: Heating/Air Conditioning - Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
