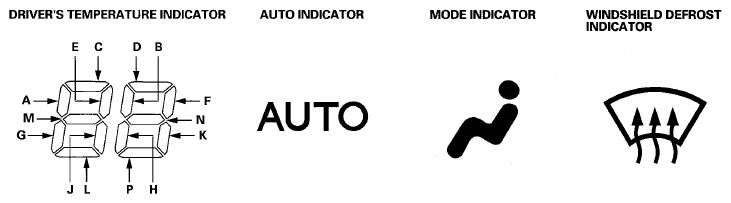

| A and AUTO |
An open in the in-car temperature sensor circuit (see DTC B1225 OR DTC INDICATOR A AND AUTO: AN OPEN IN THE IN-CAR TEMPERATURE SENSOR CIRCUIT
) |
| B and AUTO |
A short in the in-car temperature sensor circuit (see DTC B1226 OR DTC INDICATOR B AND AUTO: A SHORT IN THE IN-CAR TEMPERATURE SENSOR CIRCUIT
) |
| C and AUTO |
An open in the outside air temperature sensor circuit (see DTC B1227 OR DTC INDICATOR C AND AUTO: AN OPEN IN THE OUTSIDE AIR TEMPERATURE SENSOR CIRCUIT
) |
| D and AUTO |
A short in the outside air temperature sensor circuit (see DTC B1228 OR DTC INDICATOR D AND AUTO: A SHORT IN THE OUTSIDE AIR TEMPERATURE SENSOR CIRCUIT
) |
| E and AUTO |
An open in the sunlight sensor circuit (see DTC B1229 OR DTC INDICATOR E AND AUTO: AN OPEN IN THE SUNLIGHT SENSOR CIRCUIT
) |
| F and AUTO |
A short in the sunlight sensor circuit (see DTC B1230 OR DTC INDICATOR F AND AUTO: A SHORT IN THE SUNLIGHT SENSOR CIRCUIT
) |
| G and AUTO |
An open in the evaporator temperature sensor circuit (front) (see DTC B1231 OR DTC INDICATOR G AND AUTO: AN OPEN IN THE EVAPORATOR TEMPERATURE SENSOR CIRCUIT (FRONT)
) |
| H and AUTO |
A short in the evaporator temperature sensor circuit (front) (see DTC B1232 OR DTC INDICATOR H AND AUTO: A SHORT IN THE EVAPORATOR TEMPERATURE SENSOR CIRCUIT (FRONT)
) |
| J and AUTO |
An open in the rear evaporator temperature sensor circuit (see DTC B1213 OR DTC INDICATOR J AND AUTO: AN OPEN IN THE REAR EVAPORATOR TEMPERATURE SENSOR CIRCUIT
) |
| K and AUTO |
A short in the rear evaporator temperature sensor circuit (see DTC B1214 OR DTC INDICATOR K AND AUTO: A SHORT IN THE REAR EVAPORATOR TEMPERATURE SENSOR CIRCUIT
) |
| L and AUTO |
An open in the A/C pressure sensor circuit (see DTC B2979 OR DTC INDICATOR L AND AUTO: AN OPEN IN THE A/C PRESSURE SENSOR CIRCUIT
) |
| M and AUTO |
A short in the A/C pressure sensor circuit (see DTC B2980 OR DTC INDICATOR M AND AUTO: A SHORT IN THE A/C PRESSURE SENSOR CIRCUIT
) |
| N and AUTO |
An open in the humidity sensor circuit (see DTC B2967 OR DTC INDICATOR N AND AUTO: AN OPEN IN THE HUMIDITY SENSOR CIRCUIT
) |
| P and AUTO |
A short in the humidity sensor circuit (see DTC B2968 OR DTC INDICATOR P AND AUTO: A SHORT IN THE HUMIDITY SENSOR CIRCUIT
) |
| A and WINDSHIELD DEFROST |
Humidity/in-car temperature sensor communication error (an open or short in the humidity sensor circuit) (see DTC B121D OR DTC INDICATOR A AND WINDSHIELD DEFROST: HUMIDITY/IN-CAR TEMPERATURE SENSOR COMMUNICATION ERROR (AN OPEN OR SHORT IN THE HUMIDITY SENSOR CIRCUIT)
) |
| Band WINDSHIELD DEFROST |
An open in the air mix control motor circuit (driver's) (see DTC B1233 OR DTC INDICATOR B AND WINDSHIELD DEFROST: AN OPEN IN THE AIR MIX CONTROL MOTOR CIRCUIT (DRIVER'S)
) |
| C and WINDSHIELD DEFROST |
A short in the air mix control motor circuit (driver's) (see DTC B1234 OR DTC INDICATOR C AND WINDSHIELD DEFROST: A SHORT IN THE AIR MIX CONTROL MOTOR CIRCUIT (DRIVER'S)
) |
| D and WINDSHIELD DEFROST |
A problem in the air mix control motor circuit, linkage, door, or motor (driver's) (see DTC B1235 OR DTC INDICATOR D AND WINDSHIELD DEFROST: A PROBLEM IN THE AIR MIX CONTROL MOTOR CIRCUIT, LINKAGE, DOOR, OR MOTOR (DRIVER'S)
) |
| E and WINDSHIELD DEFROST |
An open in the passenger's air mix control motor circuit (see DTC B1236 OR DTC INDICATOR E AND WINDSHIELD DEFROST: AN OPEN IN THE PASSENGER'S AIR MIX CONTROL MOTOR CIRCUIT
) |
| F and WINDSHIELD DEFROST |
A short in the passenger's air mix control motor circuit (see DTC B1237 OR DTC INDICATOR F AND WINDSHIELD DEFROST: A SHORT IN THE PASSENGER'S AIR MIX CONTROL MOTOR CIRCUIT
) |
| G and WINDSHIELD DEFROST |
A problem in the passenger's air mix control motor circuit, linkage, door, or motor (see DTC B1238 OR DTC INDICATOR G AND WINDSHIELD DEFROST: A PROBLEM IN THE PASSENGER'S AIR MIX CONTROL MOTOR CIRCUIT, LINKAGE, DOOR, OR MOTOR
) |
| H and WINDSHIELD DEFROST |
An open in the rear air mix control motor circuit (see DTC B1244 OR DTC INDICATOR H AND WINDSHIELD DEFROST: AN OPEN IN THE REAR AIR MIX CONTROL MOTOR CIRCUIT
) |
| J and WINDSHIELD DEFROST |
A short in the rear air mix control motor circuit (see DTC B1245 OR DTC INDICATOR J AND WINDSHIELD DEFROST: A SHORT IN THE REAR AIR MIX CONTROL MOTOR CIRCUIT
) |
| K and WINDSHIELD DEFROST |
A problem in the rear air mix control motor circuit, linkage, door, or motor (see DTC B1246 OR DTC INDICATOR K AND WINDSHIELD DEFROST: A PROBLEM IN THE REAR AIR MIX CONTROL MOTOR CIRCUIT, LINKAGE, DOOR, OR MOTOR
) |
| L and WINDSHIELD DEFROST |
An open in the recirculation control motor circuit (see DTC B1215 OR DTC INDICATOR L AND WINDSHIELD DEFROST OR M AND WINDSHIELD DEFROST: AN OPEN OR SHORT IN THE RECIRCULATION CONTROL MOTOR CIRCUIT
) |
| M and WINDSHIELD DEFROST |
A short in the recirculation control motor circuit (see DTC B1215 OR DTC INDICATOR L AND WINDSHIELD DEFROST OR M AND WINDSHIELD DEFROST: AN OPEN OR SHORT IN THE RECIRCULATION CONTROL MOTOR CIRCUIT
) |
| N and WINDSHIELD DEFROST |
A problem in the recirculation control motor circuit, linkage, door, or motor (see DTC B2983 OR DTC INDICATOR N AND WINDSHIELD DEFROST: A PROBLEM IN THE RECIRCULATION CONTROL MOTOR CIRCUIT, LINKAGE, DOOR, OR MOTOR
) |
| A and MODE |
An open in the mode control motor circuit (front) (see DTC B1239 OR DTC INDICATOR A AND MODE OR B AND MODE: AN OPEN OR SHORT IN THE MODE CONTROL MOTOR CIRCUIT (FRONT)
) |
| B and MODE |
A short in the mode control motor circuit (front) (see DTC B1239 OR DTC INDICATOR A AND MODE OR B AND MODE: AN OPEN OR SHORT IN THE MODE CONTROL MOTOR CIRCUIT (FRONT)
) |
| C and MODE |
A problem in the mode control motor circuit, linkage, door, or motor (front) (see DTC B1240 OR DTC INDICATOR C AND MODE: A PROBLEM IN THE MODE CONTROL MOTOR CIRCUIT, LINKAGE, DOOR, OR MOTOR (FRONT)
) |
| K and MODE |
A problem in the blower motor circuit (front) (see DTC B1241 OR DTC INDICATOR K AND MODE: A PROBLEM IN THE BLOWER MOTOR CIRCUIT (FRONT)
) |
| L and MODE |
A problem in the rear blower motor circuit (see DTC B1223 OR DTC INDICATOR L AND MODE: A PROBLEM IN THE REAR BLOWER MOTOR CIRCUIT
) |
