Circuit Diagram
Circuit Diagram

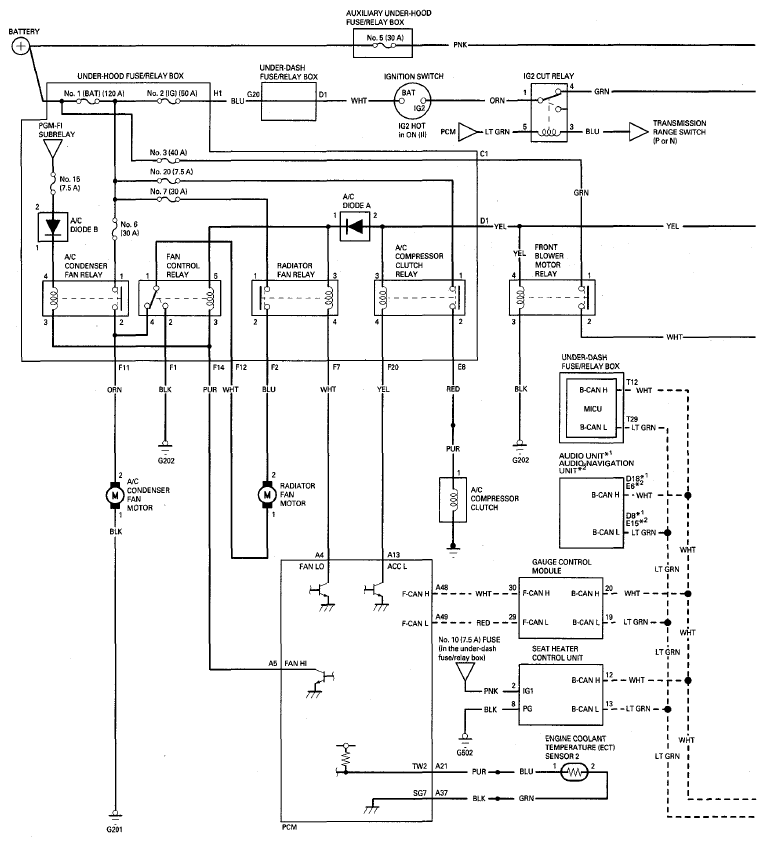

Fig 1: Climate Control - Circuit Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

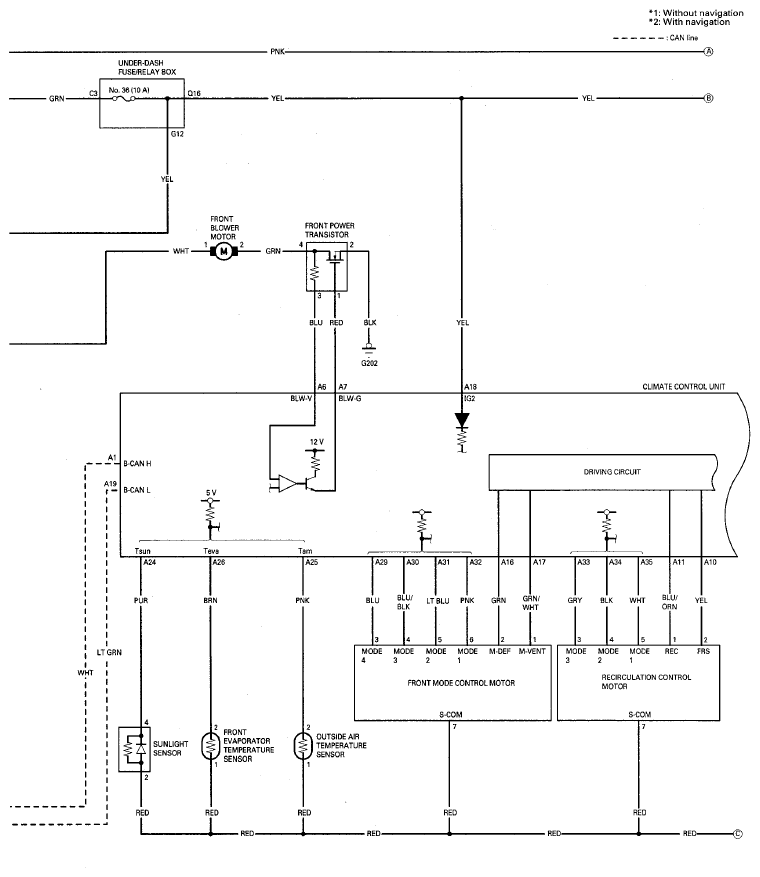

Fig 2: Climate Control - Circuit Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

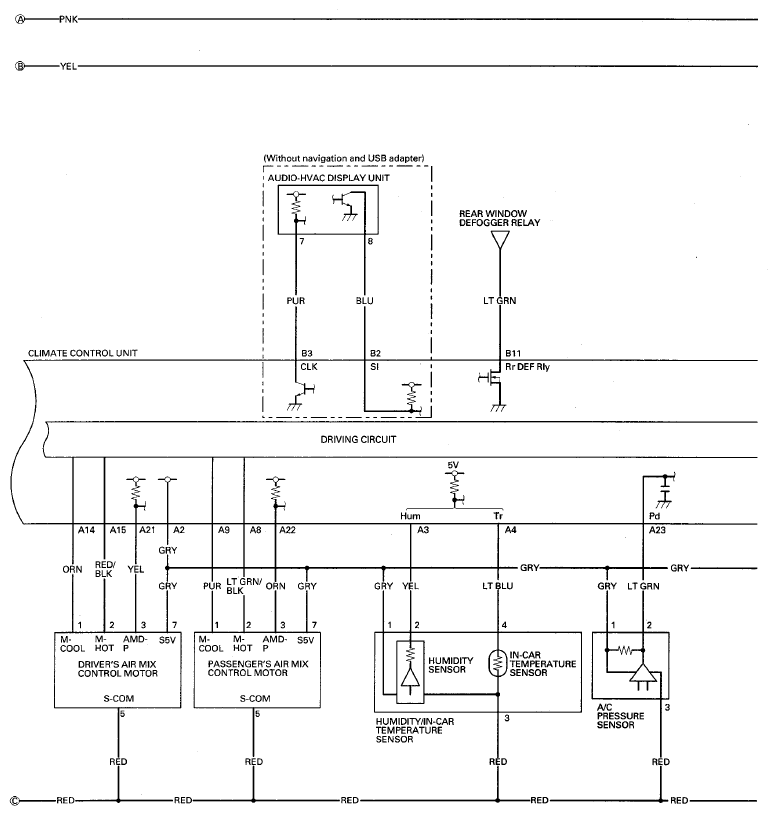

Fig 3: Climate Control - Circuit Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

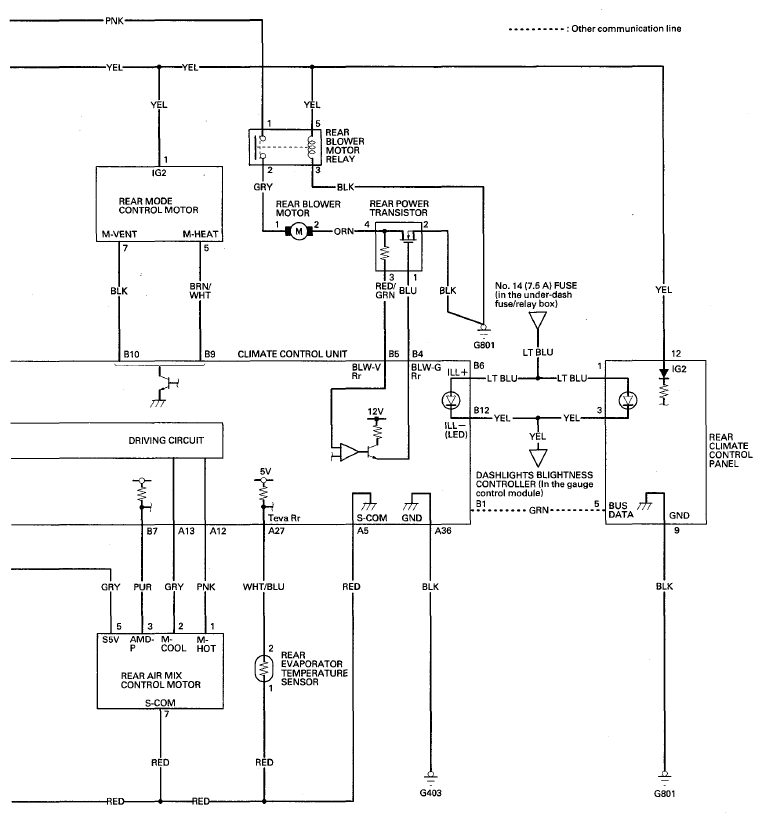

Fig 4: Climate Control - Circuit Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
