Brake Hose Replacement: Rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.

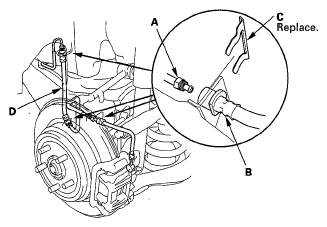

Disconnect the brake lines (A) from the brake hoses (B), then remove the brake hose clips (C).

Fig 1: Identifying Brake Lines, Brake Hoses And Brake Hose Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front side brake hose (D).
Remove the banjo bolt (A), and disconnect the brake hose from the caliper.

Fig 2: Identifying Banjo Bolt And Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear side brake hose (B).
Connect the rear side brake hose to the caliper with the banjo bolt (A) and new sealing washers (B).

Fig 3: Banjo Bolt And Sealing Washers With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install new brake hose clip (A) to the brake hoses (B) on the brackets, then connect the brake lines (C). Do not twist the brake hoses.

Fig 4: Brake Hose Clip, Brake Hoses And Brake Lines With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hoses, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces of the brake disc/drum and the inside of the wheel, then install the rear wheel.
