Navigation Display Stays On With Ignition Switch In LOCK (0)
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Check any official Honda service website for more service information about the navigation system.
- Check for aftermarket accessories that may interfere with the navigation system.
- Check the connectors for poor connections or loose terminals.
- Before troubleshooting, get the navigation system anti-theft codes.
- After troubleshooting, re-enter the anti-theft code, and re-initialize the navigation system.
- The vehicle may have been used for a show event. Check for a short jumper harness in-line with the navigation unit connector C. If a jumper harness is present, remove it and return it to Tech Line.
- Remove the key from the ignition.
Does the navigation screen stay on?
YES - Go to step 2.
NO - The system is OK at this time. ■

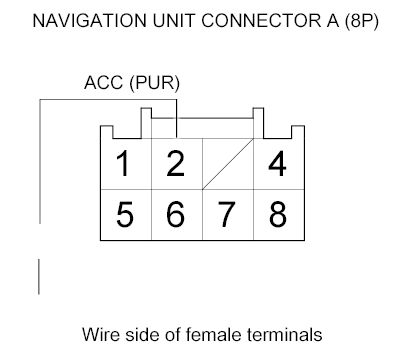

- Measure the voltage between navigation unit connector A (8P) terminal No. 2 and body ground.
Is there battery voltage?
YES - Troubleshoot a short to battery voltage on the ACC circuit.
NO - Replace the navigation unit (see NAVIGATION UNIT REMOVAL/INSTALLATION ). ■
