Installation ('11 model)

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

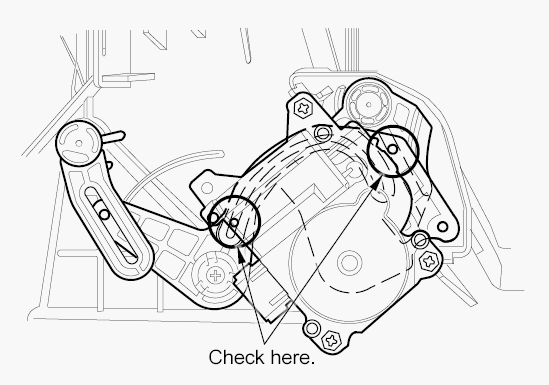

  1. Make sure the damper lever pins in the motor lever are visible through the holes.
    Fig 1: The Damper Lever Pins In The Motor Lever Are Visible
    G00510102Courtesy of AMERICAN HONDA MOTOR CO., INC.

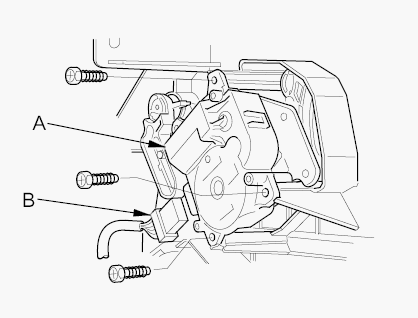

  2. While holding the recirculation control motor (A), install the self-tapping screws and connect the 7P connector (B).
    Fig 2: Install The Self-tapping Screws
    G00510106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. After installation, make sure the motor runs smoothly.
