Outside Air Temperature Sensor Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before testing, check for HVAC DTCs (see GENERAL TROUBLESHOOTING INFORMATION ).

Remove the outside air temperature sensor (see OUTSIDE AIR TEMPERATURE SENSOR REPLACEMENT ).
Dip the sensor in ice water, and measure the resistance. Then pour warm water on the sensor, and check for a change in resistance.
Compare the resistance reading between the terminals No. 1 and No. 2 of the outside air temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.

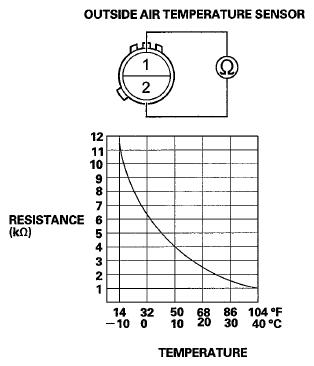

Fig 1: Identifying Outside Air Temperature Sensor Resistance & Temperature Graph
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the resistance is not as specified, replace the outside air temperature sensor (see OUTSIDE AIR TEMPERATURE SENSOR REPLACEMENT ).
