Front Mode Control Motor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's dashboard trim (see PASSENGER'S DASHBOARD TRIM REMOVAL/INSTALLATION ) and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the bolt, self-tapping screws, harness clip, and the passenger' s heater duct (A).
    NOTE: Removing the upper side screw, through the hole (B).

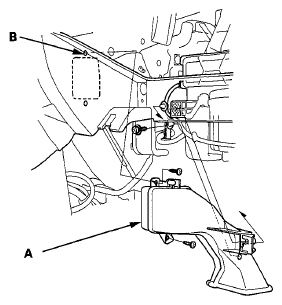

    Fig 1: Identifying Passenger's Heater Duct With Self-Tapping Screws & Harness Clip
    G05963752Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the self-tapping screw (A) from the upper side, then remove the self-tapping screw (B) from the lower side, then remove the front mode control motor (C).
    Fig 2: Identifying Self-Tapping Screw & Front Mode Control Motor
    G05963753Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
