Front Air Mix Control Motor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove self-tapping screws and the driver's heater duct (A).
    Fig 1: Identifying Driver's Heater Duct With Self-Tapping Screws
    G05963749Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 7P connector (A) from the front air mix control motor (B). Remove the self-tapping screws and the front air mix control motor from the heater unit.

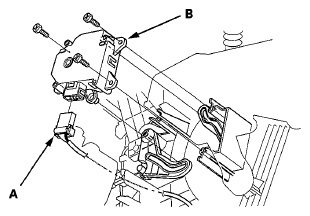

    Fig 2: Identifying Front Air Mix Control Motor 7P Connector
    G05963750Courtesy of AMERICAN HONDA MOTOR CO., INC.
