Evaporator Temperature Sensor Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C). Remove the self-tapping screw and the evaporator temperature sensor.

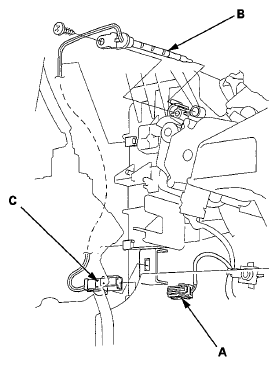

Fig 1: Identifying Evaporator Temperature Sensor Connector & Connector Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal.
