Dust and Pollen Filter Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Open the glove box, and release the glove box stops on each side, then let the glove box hang down (see GLOVE BOX REMOVAL/INSTALLATION ).

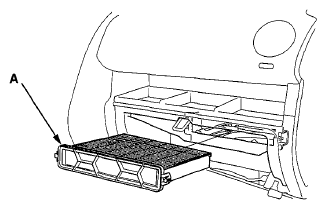

Remove the dust and pollen filter assembly (A) from the blower unit.

Fig 1: Dust And Pollen Filter Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

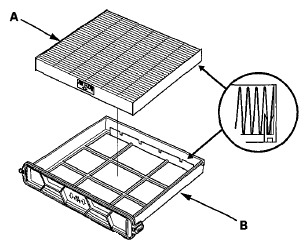

Remove the filter (A) from the housing (B), and replace the filter.

Fig 2: Identifying Filter & Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the blower unit.
