Brake Hose Replacement: Rear

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The graphics show the rear side brake hose of the vehicle, the procedure is the same for the front side brake hose.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.
Disconnect the brake line (A) from the brake hose (B), then remove the brake hose clip (C).

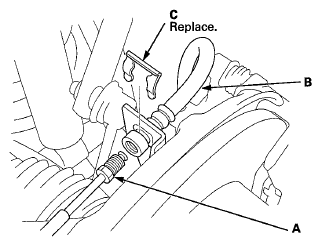

Fig 1: Identifying Brake Line, Brake Hose & Brake Hose Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the banjo bolt (A), and disconnect the brake hose from the caliper.

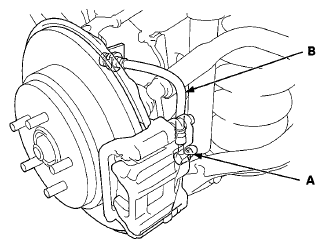

Fig 2: Identifying Banjo Bolt & Brake Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake hose (B).
Connect the brake hose to the caliper with the banjo bolt (A) and new sealing washers (B).

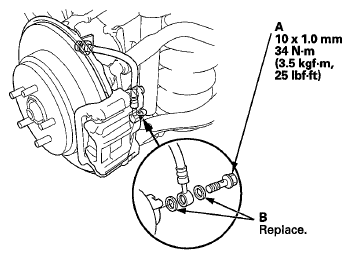

Fig 3: Banjo Bolt & Sealing Washers With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new brake hose clip (A) to the brake hose (B) on the bracket, then connect the brake line (C). Do not twist the brake hose.

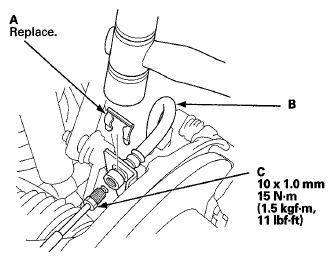

Fig 4: Brake Hose Clip, Brake Hose & Brake Line With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing the brake hose, bleed the brake system (see BRAKE SYSTEM BLEEDING ).
Do the following checks:
- Check the brake hose and line joint for leaks, and tighten if necessary.
- Check the brake hoses for interference and twisting.
Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheel.
