Stabilizer Link Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the front wheel.
Remove the flange nuts (A) while holding the respective joint pin (B) with a hex wrench (C), then remove the stabilizer link (D).

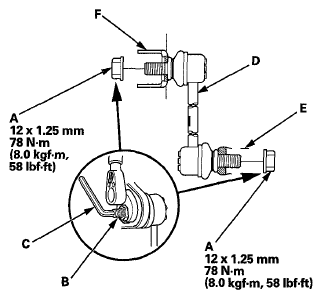

Fig 1: Flange Nuts, Joint Pin, Damper, Stabilizer Bar & Link With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the stabilizer link on the stabilizer bar (E) and the damper (F) with the joint pins set at the center of their range of movement.
Install the flange nuts, and tighten them to the specified torque value while holding the respective joint pin with a hex wrench.
Clean the mating surfaces of the brake disc and the inside of the wheel, then install the front wheel.
