Bushing Replacement

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the self-locking nut (A), then remove the rear side lower arm bushing with bracket (B).

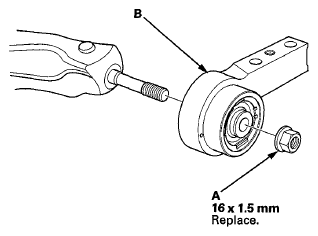

Fig 1: Identifying Self-Locking Nut & Rear Side Lower Arm Bushing With Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the angle of the lower arm center line (A) and the under edge line (B) of the bushing bracket as shown below.

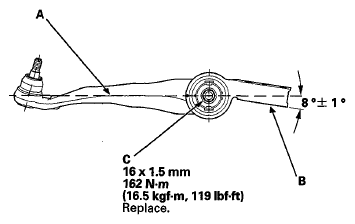

Fig 2: Angle Of Lower Arm Center Line & Under Edge Line Of Bushing Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new self-locking nut (C), then tighten the nut to the specified torque value.
