WARNING: This page is about a different car, the 2012 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

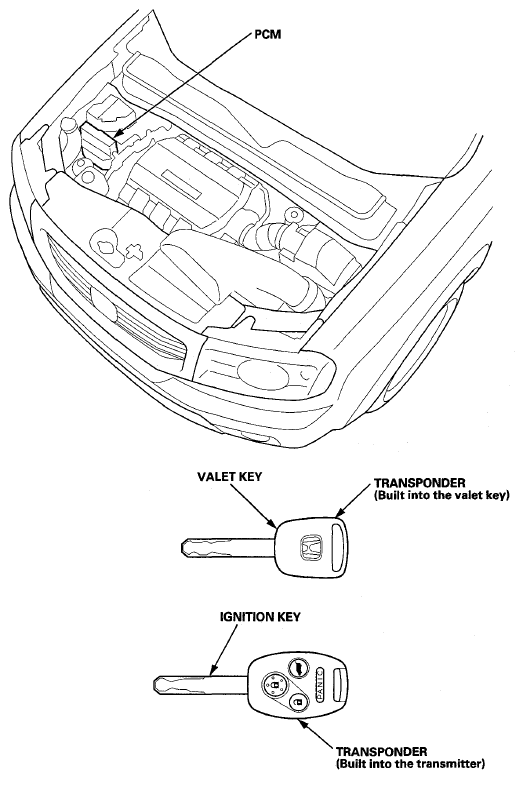

Fig 1: Identifying Immobilizer System Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

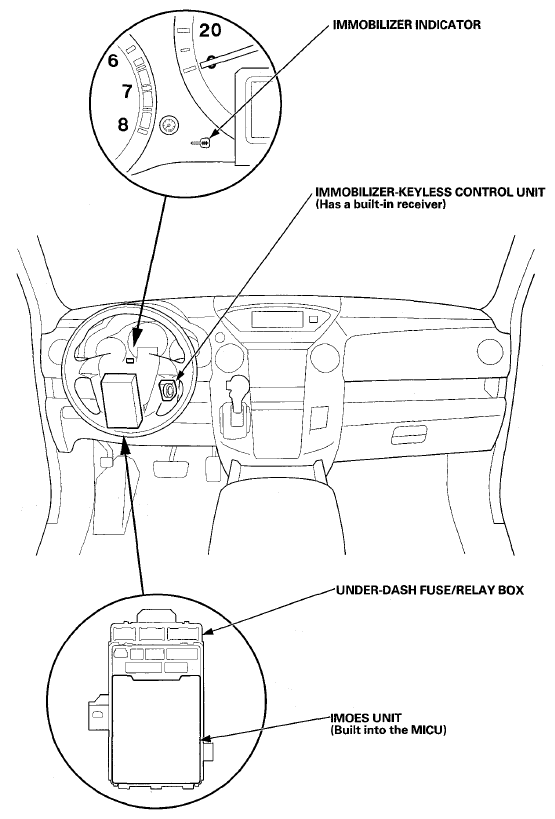

Fig 2: Identifying Immobilizer System Components Location (2 Of 2)
