Ceiling Light Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

    Ceiling Light: 5 W x 2

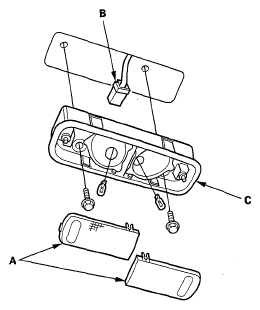

    Fig 1: Identifying Lens, 3P Connector And Housing With Mounting Screws
    G05968750Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Install in the reverse order of removal.
