Front Door Weatherstrip Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to scratch the door or the related parts.
Use a clip remover to remove the clips.

Remove the door checker mounting bolt (A) at the A-pillar.

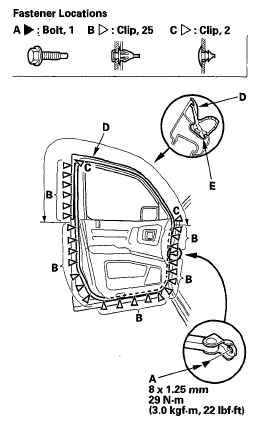

Fig 1: Door Checker Mounting Bolt, Clips And Door Weatherstrip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Detach the clips (B, C) and release the door weatherstrip (D) from the holder (E), then remove the door weatherstrip.
Install the weatherstrip in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the weatherstrip is installed in the holder securely.
- Apply medium strength liquid thread lock to the door checker mounting bolt before installation.
- Check for water leaks (see FRONT AND REAR DOOR GLASS ADJUSTMENT ).
