Rear Fender Cover Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body and related parts.
  • The left side is shown; the right side is similar.
  1. Remove the rear fender cover (A).
    1. -1 Remove the screws (B, C) and the clips (D) from the wheel arch of the fender cover.
    2. -2 Remove the clips (E) from under the rear bumper (F).
    3. -3 Pull out the rear fender cover.

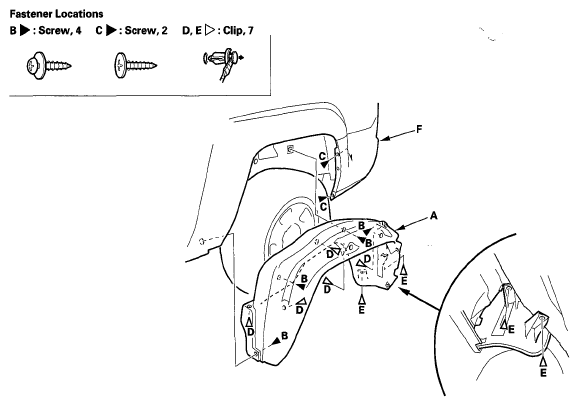

    Fig 1: Rear Fender Cover Screws, Bolts And Clips With Torque Specifications
    G05968314Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the fender cover in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
