Injector Base Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  2. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  3. Remove the power steering (P/S) pump and the P/S line bracket (see step 6 on CYLINDER HEAD REMOVAL ).
  4. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION  ).
  5. Remove the injectors (see INJECTOR REPLACEMENT ).
  6. Remove the harness holder mounting bolt (A), then disconnect the knock sensor connector (B).
    Fig 1: Identifying Harness Holder Mounting Bolt & Knock Sensor Connector
    G05961170Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the injector base mounting bolts/nuts (A), then remove the front injector base (B) and the rear injector base (C).

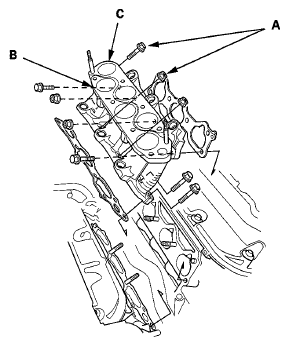

    Fig 2: Identifying Injector Base Mounting Bolts/Nuts, Front Injector Base & Rear Injector Base
    G05961171Courtesy of AMERICAN HONDA MOTOR CO., INC.
