Front Rocker Arm Oil Pressure Switch Removal/Installation

  1. Remove the engine cover (see step 1 under REMOVAL ).
  2. Disconnect the front rocker arm oil pressure switch 1P connector (A).

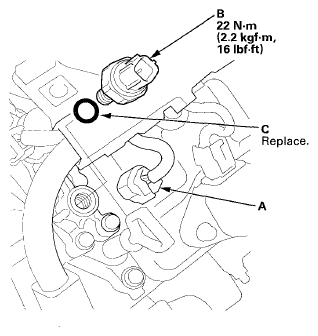

    Fig 1: Front Rocker Arm Oil Pressure Switch 1P Connector And Front Rocker Arm Oil Pressure Switch With Torque Specifications
    G08079320Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the front rocker arm oil pressure switch (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
