DTC P0AB6: Rear Engine Mount Actuator Circuit Malfunction: Notes

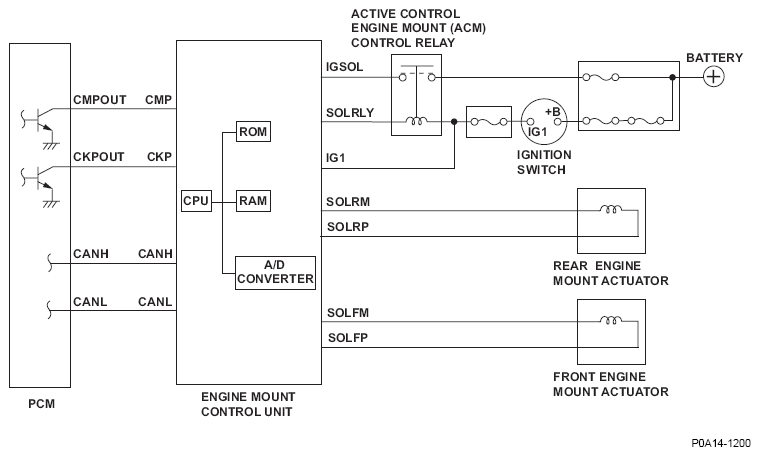

Fig 1: Engine Mount Actuator - Circuit Diagram

G08568961

Courtesy of AMERICAN HONDA MOTOR CO., INC.
