Grab Handle Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

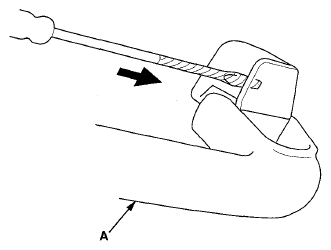

Lower the grab handle (A), then insert a small flat-tip screwdriver into the notch.

Fig 1: Inserting Small Flat-Tip Screwdriver Into Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

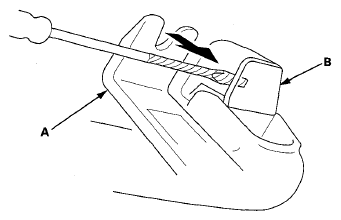

Pull on the small flat-tip screwdriver with the appropriate trim tool (A), and remove the cap (B).

Fig 2: Pulling On Small Flat-Tip Screwdriver With Appropriate Trim Tool To Remove Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

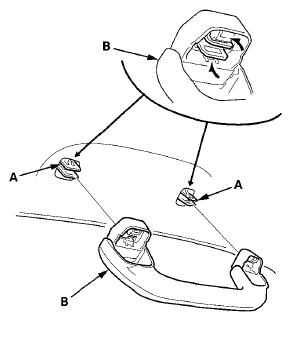

Pinch the clips (A) to release its hooks, then remove the grab handle (B).

Fig 3: Identifying Clips And Grab Handles
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pinch the hooks on the clips (A) with a pair of pliers, and pull out the clips.

Fig 4: Pulling Out Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the side curtain airbag has deployed, replace the grab handle with a new one.
If the side curtain airbag has not deployed, inspect the grab handle for damage. A damaged grab handle may cause the side curtain airbag to deploy improperly, possibly causing injury. Replace the grab handle if it has any of the following damage:
- Any cracks or damage in the grab handle (A)
- Any cracks or stress-whitening in the caps (B)

  Fig 5: Identifying Grab Handles And Caps
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

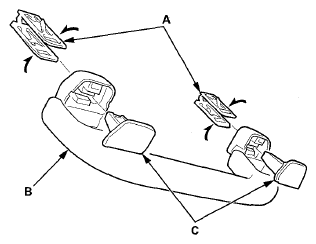

Install the clips (A) to the grab handle (B), then install the caps (C) fully into the clips.

Fig 6: Installing Clips To Grab Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

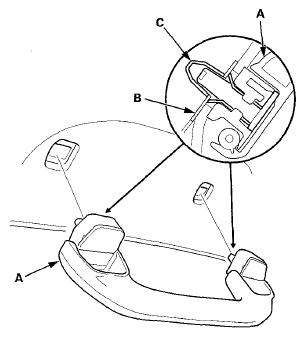

Position the grab handle (A) on the mounting bracket (B), and push on the grab handle until the clips (C) snap into place securely.

Fig 7: Identifying Grab Handle, Mounting Bracket And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
