Trailer Hitch Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
After removing the trailer hitch mounting bolts, be sure to replace them with new ones.

Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
Detach the clip (A), then remove the connector (B).

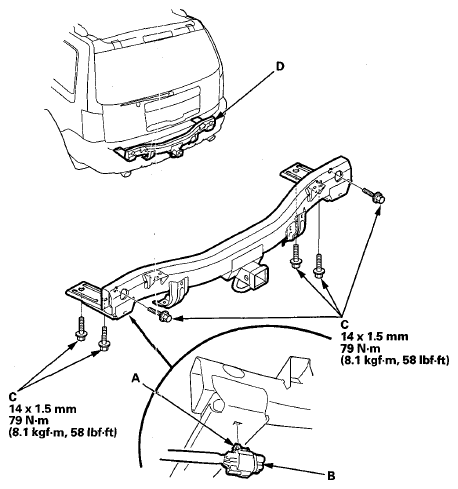

Fig 1: Trailer Hitch, Bolts, Clip And Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (C), then remove the trailer hitch (D).
Install the trailer hitch in the reverse order of removal.
