Tailgate Release Actuator Test: Test

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Without Power Tailgate

Tailgate Lower Trim Panel - Remove

Tailgate Release Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

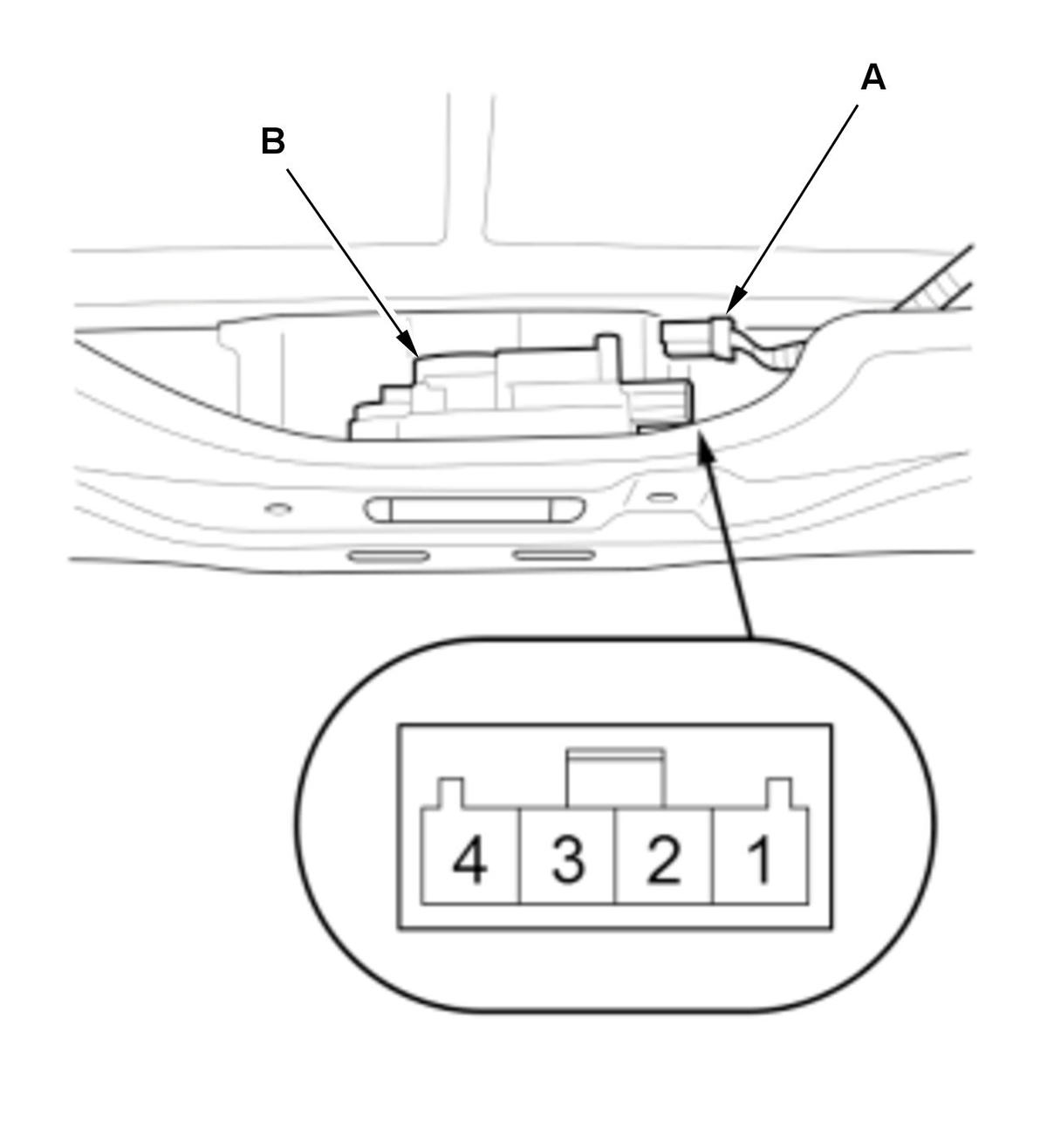

1. Disconnect the connector (A).

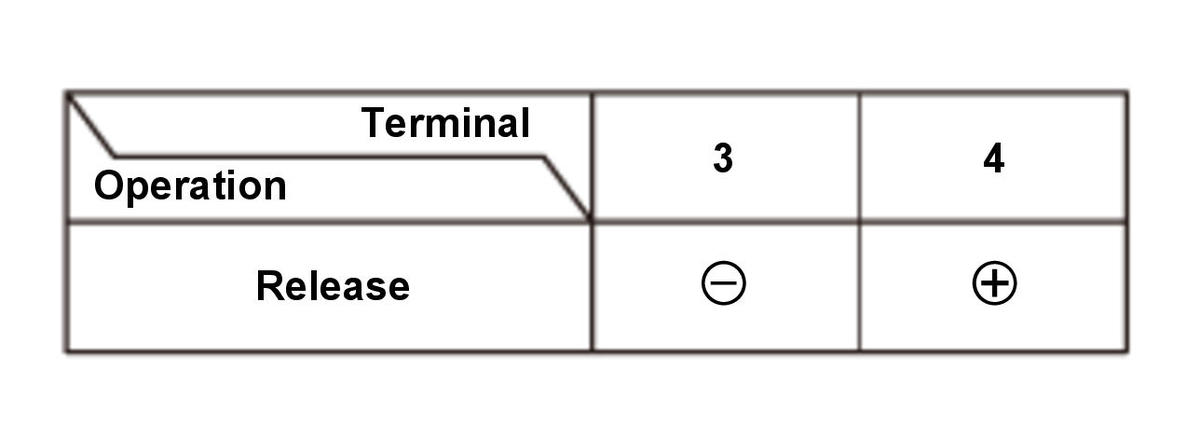

2. Check the actuator operation by connecting power and ground according to the table in illustration.

NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.

3. If the actuator does not operate as specified, the tailgate release actuator is faulty; replace the tailgate latch (B).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
