DTC P1703: Clutch Switch Incorrect Correlation

NOTE:  Before you troubleshoot, review the general troubleshooting information - Refer to: HOW TO TROUBLESHOOT THE FUEL AND EMISSIONS SYSTEMS or How to Troubleshoot the CVT System(CVT) .

DTCs

1. Clutch pedal position switch installation check:

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Check clutch pedal position switches A/C, and B/D installation.

   Is it damaged or loose?

   YES

   Repair or replace the faulty clutch pedal position switch .

   NO

   Go to step 2.

2. Clutch pedal position switch signal check:

   - 1. Turn the vehicle to the ON mode.

   - 2. Check CLUTCH PEDAL POSITION SWITCH A, A (C), and D in the DATA LIST with the HDS.

   Signal	Current conditions
   	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A
   CLUTCH PEDAL POSITION SWITCH A (C)
   CLUTCH PEDAL POSITION SWITCH D

   - 3. Press the clutch pedal slowly, and check the value (OPEN or CLOSE) change timing of CLUTCH PEDAL POSITION SWITCH A, A (C), and D, and compare them to the following table.

   CLUTCH PEDAL POSITION SWITCH	Clutch Pedal Release	(slowly pressed)	(slowly pressed)	(slowly pressed)	Clutch Pedal Fully Pressed
   A	OPEN	OPEN	OPEN	CLOSE	CLOSE
   A (C)	OPEN	OPEN	CLOSE	CLOSE	CLOSE
   D	CLOSE	OPEN	OPEN	OPEN	OPEN

   Is the change timing same as the table?

   All signal same as table

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at clutch pedal position switches A/C, B/D, and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

   CLUTCH PEDAL POSITION SWITCH A signal failure

   Go to step 3.

   CLUTCH PEDAL POSITION SWITCH C signal failure

   Go to step 9.  9

   CLUTCH PEDAL POSITION SWITCH D signal failure

   Go to step 15.  15

3. Clutch pedal position switch A signal check (stuck OPEN or CLOSE):

   - 1. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A

   - 2. Press the clutch pedal slowly, and check the value of CLUTCH PEDAL POSITION SWITCH A.

   Is the value OPEN or CLOSE?

   OPEN

   Go to step 4.

   CLOSE

   Go to step 7.  7

4. Determine possible failure area (clutch pedal position switch A, others):

   - 1. Disconnect the following connector.

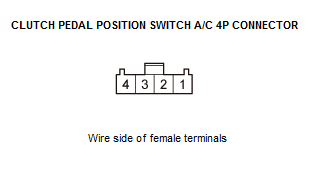

   Clutch pedal position switch A/C 4P connector

   - 2. Connect terminals A and B with a jumper wire.

   Terminal A	Clutch pedal position switch A/C 4P connector No. 1
   Terminal B	Clutch pedal position switch A/C 4P connector No. 4

   Courtesy of HONDA, U.S.A., INC.

   - 3. Turn the vehicle to the ON mode.

   - 4. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A	CLOSE

   Do the current condition(s) match the threshold?

   YES

   Replace clutch pedal position switch A/C .

   NO

   Go to step 5.

5. Open wire check (GND line):

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Remove the jumper wire from the clutch pedal position switch A/C 4P connector.

   - 3. Connect terminals A and B with a jumper wire.

   Terminal A	Clutch pedal position switch A/C 4P connector No. 4
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   - 4. Turn the vehicle to the ON mode.

   - 5. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A	CLOSE

   Do the current condition(s) match the threshold?

   YES

   Repair an open in the GND wire between clutch pedal position switch A/C and G302.

   NO

   Go to step 6.

6. Open wire check (CLUTCH SW(SA) line):

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS.

   SCS short

   - 3. Disconnect the following connector.

   PCM connector A (51P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Clutch pedal position switch A/C 4P connector: disconnected
   	PCM connector A (51P): disconnected
   	Clutch pedal position switch A 4P connector No. 4: jumped to body ground
   Test point 1	PCM connector A (51P) No. 10
   Test point 2	Body ground

   Is there continuity?

   YES

   The CLUTCH SW(SA) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P1703 goes away and the PCM was updated, troubleshooting is complete. If DTC P1703 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the CLUTCH SW(SA) wire between the PCM (A10) and clutch pedal position switch A/C.

7. Determine possible failure area (clutch pedal position switch A, others):

   - 1. Disconnect the following connector.

   Clutch pedal position switch A/C 4P connector

   - 2. Turn the vehicle to the ON mode.

   - 3. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A	OPEN

   Do the current condition(s) match the threshold?

   YES

   Replace clutch pedal position switch A/C .

   NO

   Go to step 8.

8. Shorted wire check (CLUTCH SW(SA) line):

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS.

   SCS short

   - 3. Disconnect the following connector.

   PCM connector A (51P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Clutch pedal position switch A/C 4P connector: disconnected
   	PCM connector A (51P): disconnected
   Test point 1	Clutch pedal position switch A 4P connector No. 4
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the CLUTCH SW(SA) wire between clutch pedal position switch A/C and the PCM (A10).

   NO

   The CLUTCH SW(SA) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P1703 goes away and the PCM was updated, troubleshooting is complete. If DTC P1703 goes away and the PCM was substituted, replace the original PCM .

9. Clutch pedal position switch C signal check (stuck OPEN or CLOSE):

   - 1. Check the parameter(s) below with the HDS while pressing the clutch pedal slowly, and check the value of CLUTCH PEDAL POSITION SWITCH A (C).

   Signal	Current conditions
   	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A (C)

   Is the value OPEN or CLOSE?

   OPEN

   Go to step 10.

   CLOSE

   Go to step 13.  13

10. Determine possible failure area (clutch pedal position switch C, others):

    - 1. Disconnect the following connector.

    Clutch pedal position switch A/C 4P connector

    - 2. Connect terminals A and B with a jumper wire.

    Terminal A	Clutch pedal position switch A/C 4P connector No. 2
    Terminal B	Clutch pedal position switch A/C 4P connector No. 3

    Courtesy of HONDA, U.S.A., INC.

    - 3. Turn the vehicle to the ON mode.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Threshold		Current conditions
    	Values	Unit	Values	Unit
    CLUTCH PEDAL POSITION SWITCH A (C)	CLOSE

    Do the current condition(s) match the threshold?

    YES

    Replace clutch pedal position switch A/C .

    NO

    Go to step 11.

11. Open wire check (GND line):

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove the jumper wire from the clutch pedal position switch A/C 4P connector.

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Clutch pedal position switch A/C 4P connector No. 3
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Turn the vehicle to the ON mode.

    - 5. Check the parameter(s) below with the HDS.

    Signal	Threshold		Current conditions
    	Values	Unit	Values	Unit
    CLUTCH PEDAL POSITION SWITCH A (C)	CLOSE

    Do the current condition(s) match the threshold?

    YES

    Repair an open in the GND wire between clutch pedal position switch A/C and G302.

    NO

    Go to step 12.

12. Open wire check (CLUTCH SW(SHIFT UP) line):

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    SCS short

    - 3. Disconnect the following connector.

    PCM connector A (51P)

    - 4. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Clutch pedal position switch A/C 4P connector: disconnected
    	PCM connector A (51P): disconnected
    	Clutch pedal position switch A/C 4P connector No. 3: jumped to body ground
    Test point 1	PCM connector A (51P) No. 9
    Test point 2	Body ground

    Is there continuity?

    YES

    The CLUTCH SW(SHIFT UP) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P1703 goes away and the PCM was updated, troubleshooting is complete. If DTC P1703 goes away and the PCM was substituted, replace the original PCM .

    NO

    Repair an open in the CLUTCH SW(SHIFT UP) wire between the PCM (A9) and clutch pedal position switch A/C.

13. Determine possible failure area (clutch pedal position switch C, others):

    - 1. Disconnect the following connector.

    Clutch pedal position switch A/C 4P connector

    - 2. Turn the vehicle to the ON mode.

    - 3. Check the parameter(s) below with the HDS.

    Signal	Threshold		Current conditions
    	Values	Unit	Values	Unit
    CLUTCH PEDAL POSITION SWITCH A (C)	OPEN

    Do the current condition(s) match the threshold?

    YES

    Replace clutch pedal position switch A/C .

    NO

    Go to step 14.

14. Shorted wire check (CLUTCH SW(SHIFT UP) line):

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    SCS short

    - 3. Disconnect the following connector.

    PCM connector A (51P)

    - 4. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Clutch pedal position switch A/C 4P connector: disconnected
    	PCM connector A (51P): disconnected
    Test point 1	Clutch pedal position switch A/C 4P connector No. 3
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the CLUTCH SW(SHIFT UP) wire between clutch pedal position switch A/C and the PCM (A9).

    NO

    The CLUTCH SW(SHIFT UP) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P1703 goes away and the PCM was updated, troubleshooting is complete. If DTC P1703 goes away and the PCM was substituted, replace the original PCM .

15. Clutch pedal position switch D signal check (stuck OPEN or CLOSE):

    - 1. Check the parameter(s) below with the HDS while pressing the clutch pedal slowly, and check the value of CLUTCH PEDAL POSITION SWITCH D.

    Signal	Current conditions
    	Values	Unit
    CLUTCH PEDAL POSITION SWITCH D

    - 2. Press the clutch pedal slowly, and check the value of CLUTCH PEDAL POSITION SWITCH D.

    Is the value OPEN or CLOSE?

    OPEN

    Go to step 16.

    CLOSE

    Go to step 19.  19

16. Determine possible failure area (clutch pedal position switch D, others):

    - 1. Disconnect the following connector.

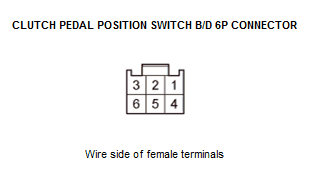

    Clutch pedal position switch B/D 6P connector

    - 2. Connect terminals A and B with a jumper wire.

    Terminal A	Clutch pedal position switch B/D 6P connector No. 1
    Terminal B	Clutch pedal position switch B/D 6P connector No. 3

    Courtesy of HONDA, U.S.A., INC.

    - 3. Turn the vehicle to the ON mode.

    - 4. Check the parameter(s) below with the HDS.

    Signal	Threshold		Current conditions
    	Values	Unit	Values	Unit
    CLUTCH PEDAL POSITION SWITCH D	OPEN

    Do the current condition(s) match the threshold?

    YES

    Replace clutch pedal position switch B/D .

    NO

    Go to step 17.

17. Open wire check (GND line):

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove the jumper wire from the clutch pedal position switch B/D 6P connector.

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A	Clutch pedal position switch B/D 6P connector No. 3
    Terminal B	Body ground

    Courtesy of HONDA, U.S.A., INC.

    - 4. Turn the vehicle to the ON mode.

    - 5. Check the parameter(s) below with the HDS.

    Signal	Threshold		Current conditions
    	Values	Unit	Values	Unit
    CLUTCH PEDAL POSITION SWITCH D	CLOSE

    Do the current condition(s) match the threshold?

    YES

    Repair an open in the GND wire between clutch pedal position switch B/D and G302.

    NO

    Go to step 18.

18. Open wire check (CLUTCH SW(I/S) line):

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    SCS short

    - 3. Disconnect the following connector.

    PCM connector A (51P)

    - 4. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Clutch pedal position switch B/D 6P connector: disconnected
    	PCM connector A (51P): disconnected
    	Clutch pedal position switch B/D 6P connector No. 3: jumped to body ground
    Test point 1	PCM connector A (51P) No. 20
    Test point 2	Body ground

    Is there continuity?

    YES

    The CLUTCH SW(I/S) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P1703 goes away and the PCM was updated, troubleshooting is complete. If DTC P1703 goes away and the PCM was substituted, replace the original PCM .

    NO

    Repair an open in the CLUTCH SW(I/S) wire between the PCM (A20) and clutch pedal position switch B/D.

19. Determine possible failure area (clutch pedal position switch D, others):

    - 1. Disconnect the following connector.

    Clutch pedal position switch B/D 6P connector

    - 2. Turn the vehicle to the ON mode.

    - 3. Check the parameter(s) below with the HDS.

    Signal	Threshold		Current conditions
    	Values	Unit	Values	Unit
    CLUTCH PEDAL POSITION SWITCH D	OPEN

    Do the current condition(s) match the threshold?

    YES

    Replace clutch pedal position switch B/D .

    NO

    Go to step 20.

20. Shorted wire check (CLUTCH SW(I/S) line):

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    SCS short

    - 3. Disconnect the following connector.

    PCM connector A (51P)

    - 4. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Clutch pedal position switch B/D 6P connector: disconnected
    	PCM connector A (51P): disconnected
    Test point 1	Clutch pedal position switch B/D 6P connector No. 3
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the CLUTCH SW(I/S) wire between clutch pedal position switch B/D and the PCM (A20).

    NO

    The CLUTCH SW(I/S) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P1703 goes away and the PCM was updated, troubleshooting is complete. If DTC P1703 goes away and the PCM was substituted, replace the original PCM .
