Fit LX, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VSA System - Testing & Troubleshooting
>>
Description
>>

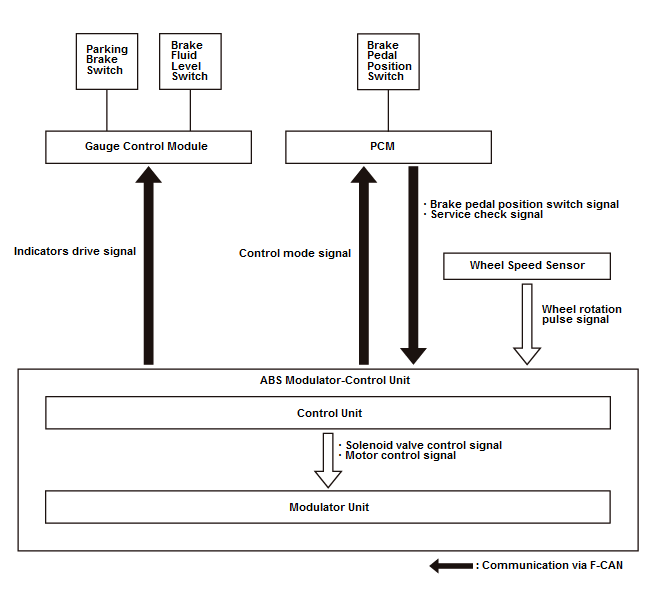

ABS System Description - System Diagram
ABS System Description - System Diagram
The ABS system controller uses information from wheel speed sensors and the PCM.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
